R7FS7G27G2A01CBD#AC0 - Renesas Electronics

Description: Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy, the S7G2 MCU Group has 3 to 4 MB of flash memory and 640 KB of SRAM. Rich in features, it includes a Graphics LCD Controller, 2D Drawing Engine, Capacitive Touch Sensing Unit, advanced analog, Ethernet MAC Controller with IEEE 1588 PTP, USB 2.0 High-Speed and Full-Speed, SDHI, Quad SPI, and safety and security features, to handle a wide range of complexity.Synergy Software Package (SSP)Commerci

Download R7FS7G27G2A01CBD#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R7FS7G27G2A01CBD#AC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

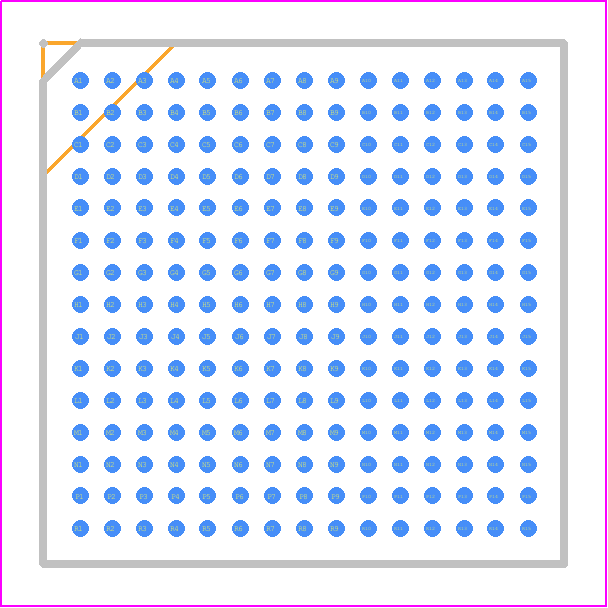

R7FS7G27G2A01CBD#AC0 - Renesas Electronics PCB footprint - BGA - BGA - p-lfbga224-13*13-0.8
click to zoom
3D Models
R7FS7G27G2A01CBD#AC0 - Renesas Electronics - 3D model - BGA - p-lfbga224-13*13-0.8
click to zoom

R7FS7G27G2A01CBD#AC0 Details

  • Manufacturer Part Number:

    R7FS7G27G2A01CBD#AC0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    224

  • Manufacturer Package Code:

    PLBG0224GA

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FS7G27G2A01CBD#AC0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R7FS7G27G2A01CBD#AC0 is 2.7V to 3.6V.
  • The clock settings for the R7FS7G27G2A01CBD#AC0 can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet for specific register settings and configuration options.
  • The R7FS7G27G2A01CBD#AC0 supports a maximum clock frequency of 240 MHz.
  • The ADC on the R7FS7G27G2A01CBD#AC0 can be used by configuring the ADC Control Register (ADCCR) and the ADC Conversion Register (ADCCR). Refer to the datasheet for specific register settings and conversion modes.
  • The R7FS7G27G2A01CBD#AC0 has a maximum of 256 KB of flash memory available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R7FS7G27G2A01CBD#AC0 Overview

Use the download button to access the R7FS7G27G2A01CBD#AC0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R7FS7, or try a keyword search, such as Microcontrollers
