R7S721000VCFP#AA0 - Renesas Electronics

R7S721000VCFP#AA0 Details

• Manufacturer Part Number:

  R7S721000VCFP#AA0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LQFP

• Package Description:

  LFQFP-256

• Pin Count:

  256

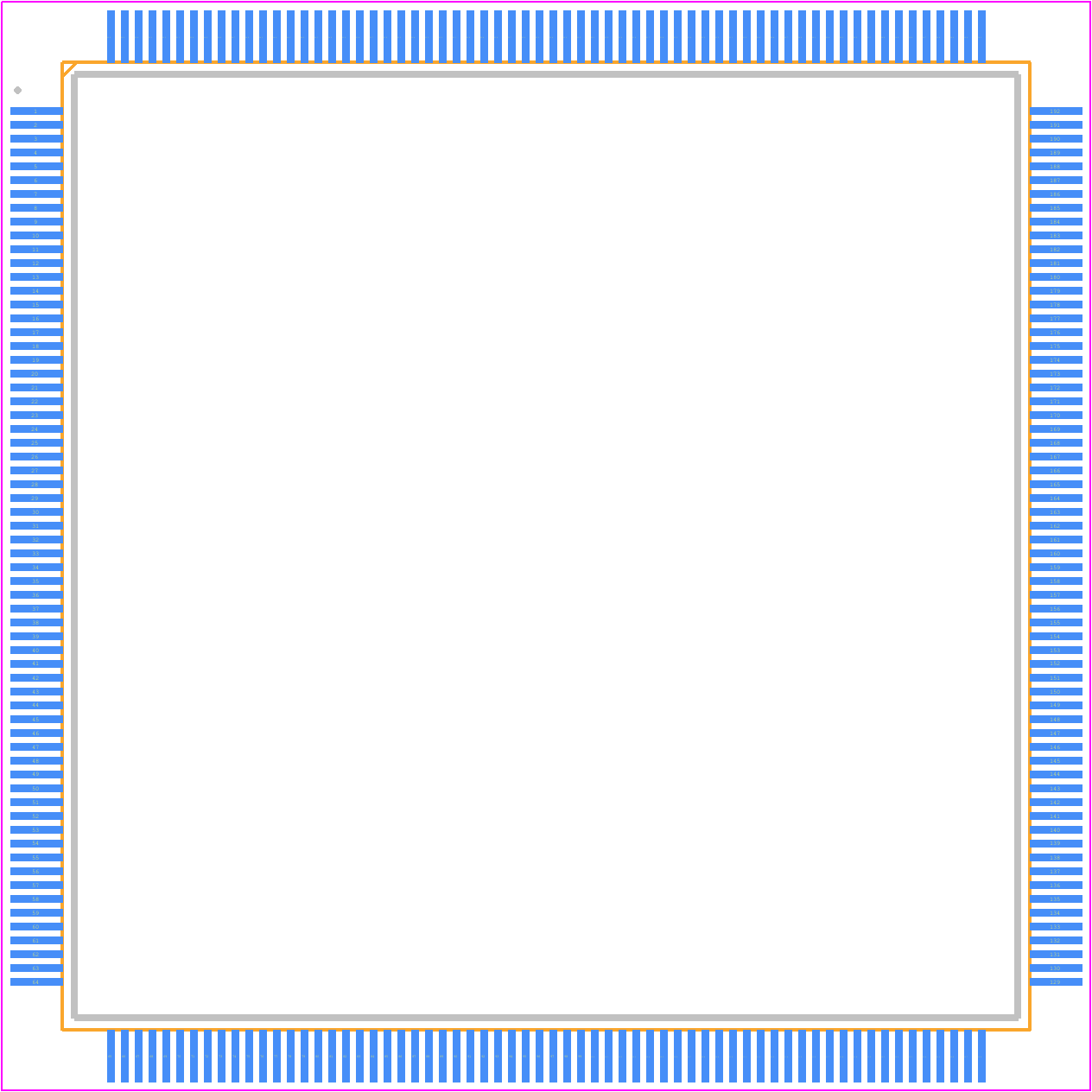

• Manufacturer Package Code:

  PLQP0256LB

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  48 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQFP-G256

• Length:

  28 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of External Interrupts:

  8

• Number of Serial I/Os:

  10

• Number of Terminals:

  256

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP256,1.2SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (words):

  131072

• Seated Height-Max:

  1.7 mm

• Speed:

  400 MHz

• Supply Current-Max:

  850 mA

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.1 V

• Supply Voltage-Nom:

  1.18 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
