R7S721010VCBG#AC0 - Renesas Electronics

Description: The RZ/A1M Group MPUs are full-featured with an Arm® Cortex®-A9 core running at 400MHz and 5MB of on-chip SRAM. With 5MB on-chip SRAM, the RZ/A1M supports up to 2 Displays with WSVGA (1024x600) resolution or a single display with WXGA (1280x800) resolution without the need for external memory. RZ/A1M enables very compact embedded designs without the need to worry about memory procurement and memory EOL. With RZ/A1M, you can design your embedded system like an MCU and get the performance of a 400MHz Arm® Cor

Download R7S721010VCBG#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

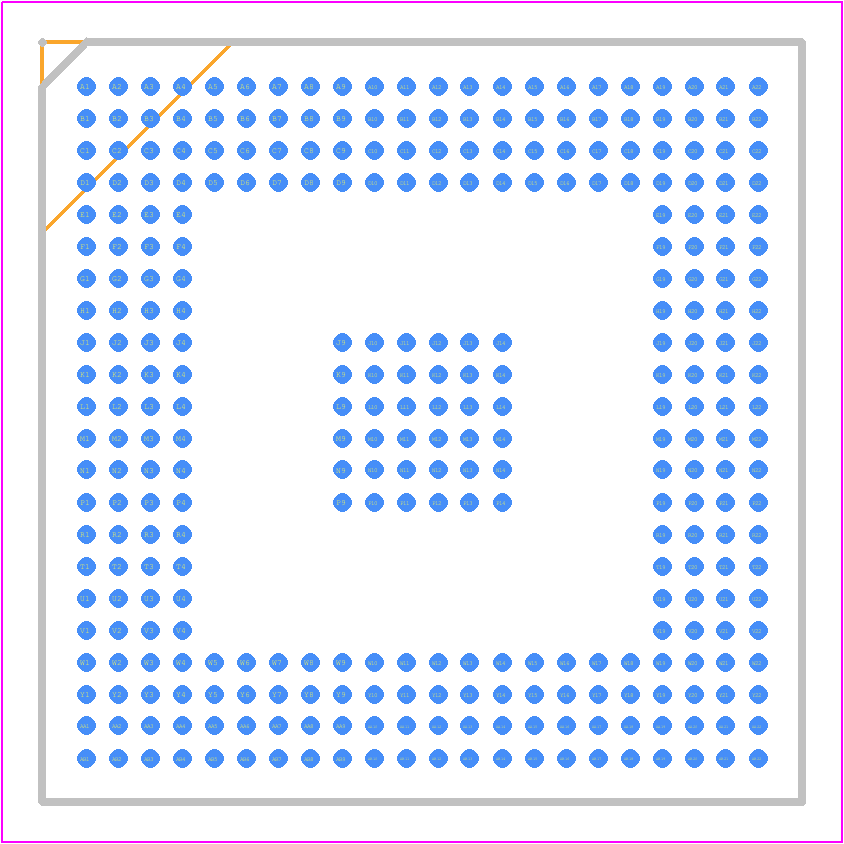

R7S721010VCBG#AC0 - Renesas Electronics PCB footprint - BGA - BGA - PRBG0324GA-A
click to zoom
3D Models
R7S721010VCBG#AC0 - Renesas Electronics  - 3D model - BGA - PRBG0324GA-A
click to zoom

R7S721010VCBG#AC0 Details

  • Manufacturer Part Number:

    R7S721010VCBG#AC0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFBGA

  • Package Description:

    BGA-256

  • Pin Count:

    256

  • Manufacturer Package Code:

    PLBG0256KA

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    11 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    16

  • Number of External Interrupts:

    180

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    256

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (words):

    5242880

  • Seated Height-Max:

    1.4 mm

  • Speed:

    400 MHz

  • Supply Current-Max:

    850 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

R7S721010VCBG#AC0 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the R7S721010VCBG#AC0 is 32 MHz.
  • The minimum voltage required for the R7S721010VCBG#AC0 to operate is 1.8V.
  • Yes, the R7S721010VCBG#AC0 has 1 MB of built-in flash memory.
  • The maximum temperature range for the R7S721010VCBG#AC0 is -40°C to 85°C.
  • Yes, the R7S721010VCBG#AC0 has a 12-bit, 24-channel analog-to-digital converter (ADC).
