R7S921043VCBG#AC0 - Renesas Electronics

Description: RZ/A2M can be used in applications that require an advanced HMI infrastructure and ecosystem as well superior acceleration technology for innovative embedded artificial intelligence, computer vision and image processing use cases.DRP Technology and ApplicationsGet Started Using RZ/A2M

Download R7S921043VCBG#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R7S921043VCBG#AC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

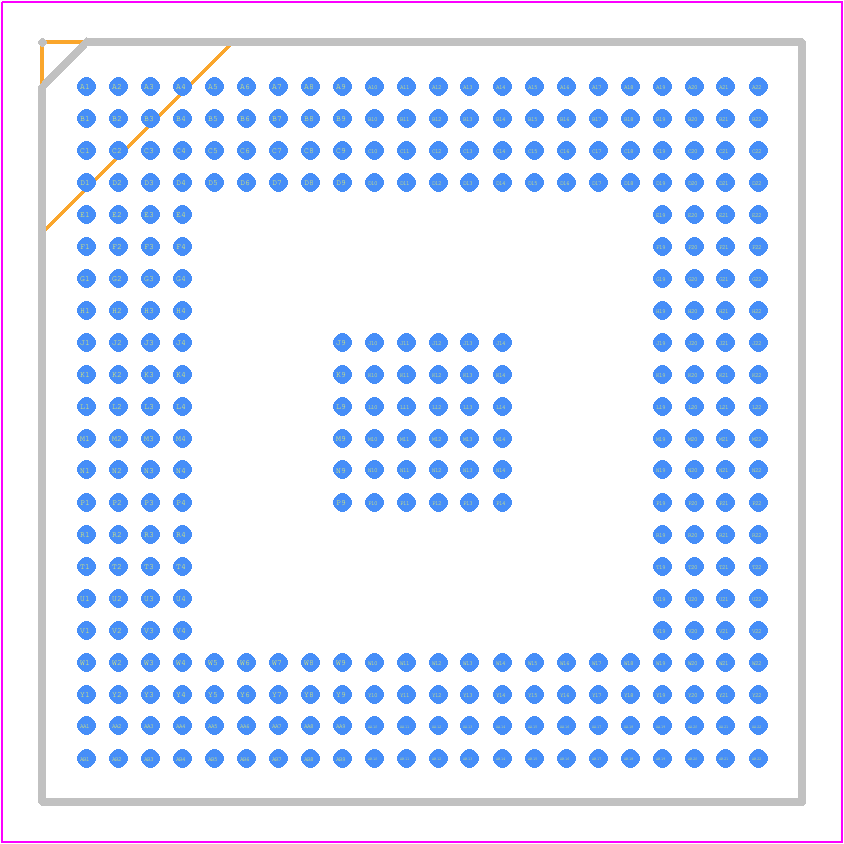

R7S921043VCBG#AC0 - Renesas Electronics PCB footprint - BGA - BGA - PRBG0324GA-A
click to zoom
3D Models
R7S921043VCBG#AC0 - Renesas Electronics - 3D model - BGA - PRBG0324GA-A
click to zoom

R7S921043VCBG#AC0 Details

  • Manufacturer Part Number:

    R7S921043VCBG#AC0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    FBGA

  • Package Description:

    BGA-324

  • Pin Count:

    324

  • Manufacturer Package Code:

    PRBG0324GA

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    24 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    19 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    16

  • Number of External Interrupts:

    41

  • Number of Serial I/Os:

    13

  • Number of Terminals:

    324

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA324,22X22,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • RAM (words):

    4194304

  • Seated Height-Max:

    2.1 mm

  • Speed:

    528 MHz

  • Supply Current-Max:

    994 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

R7S921043VCBG#AC0 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the R7S921043VCBG#AC0, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact Renesas support for more information.
  • Renesas recommends following the power sequencing guidelines outlined in the datasheet, which includes powering up the VCC and VCCIO pins simultaneously, followed by the VREF pin. Additionally, ensure that the power supply rails are stable and within the recommended voltage range before enabling the device.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliability and prevent thermal shutdown.
  • Renesas recommends using a logic analyzer or oscilloscope to capture I2C bus signals and verify that the clock and data lines are within the specified timing parameters. Additionally, ensure that the I2C bus is properly terminated and that there are no bus conflicts or signal integrity issues.
  • Renesas recommends implementing ESD protection measures such as TVS diodes or ESD protection arrays on the I/O pins to prevent damage from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
