R7S921052VCBG#AC0 footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

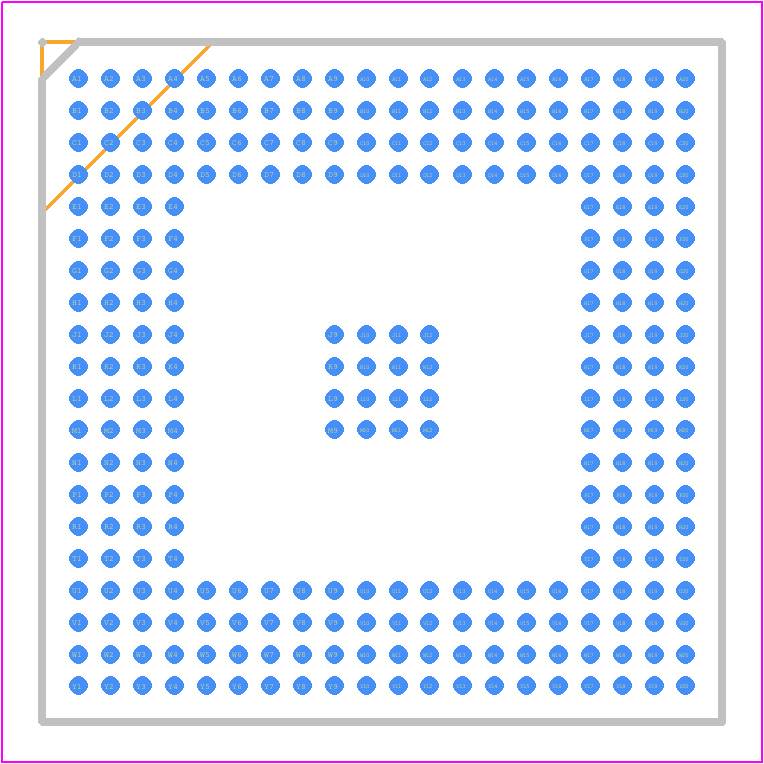

PCB Footprints

3D Models

R7S921052VCBG#AC0 Details

The recommended operating temperature range for the R7S921052VCBG#AC0 is -40°C to 85°C.
The clock settings for the R7S921052VCBG#AC0 can be configured using the Clock Control Register (CKCR) and the PLL Control Register (PLLCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
The maximum frequency of the R7S921052VCBG#AC0's CPU is 50 MHz.
The R7S921052VCBG#AC0 has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Controller (PMC) and the System Clock Controller (SCC). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
The R7S921052VCBG#AC0 has 512 KB of flash memory.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the R7S921052VCBG#AC0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R7S92, or try a keyword search, such as Microprocessors
