R8A77800ANBGV - Renesas Electronics

R8A77800ANBGV Details

• Manufacturer Part Number:

  R8A77800ANBGV

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

• Package Description:

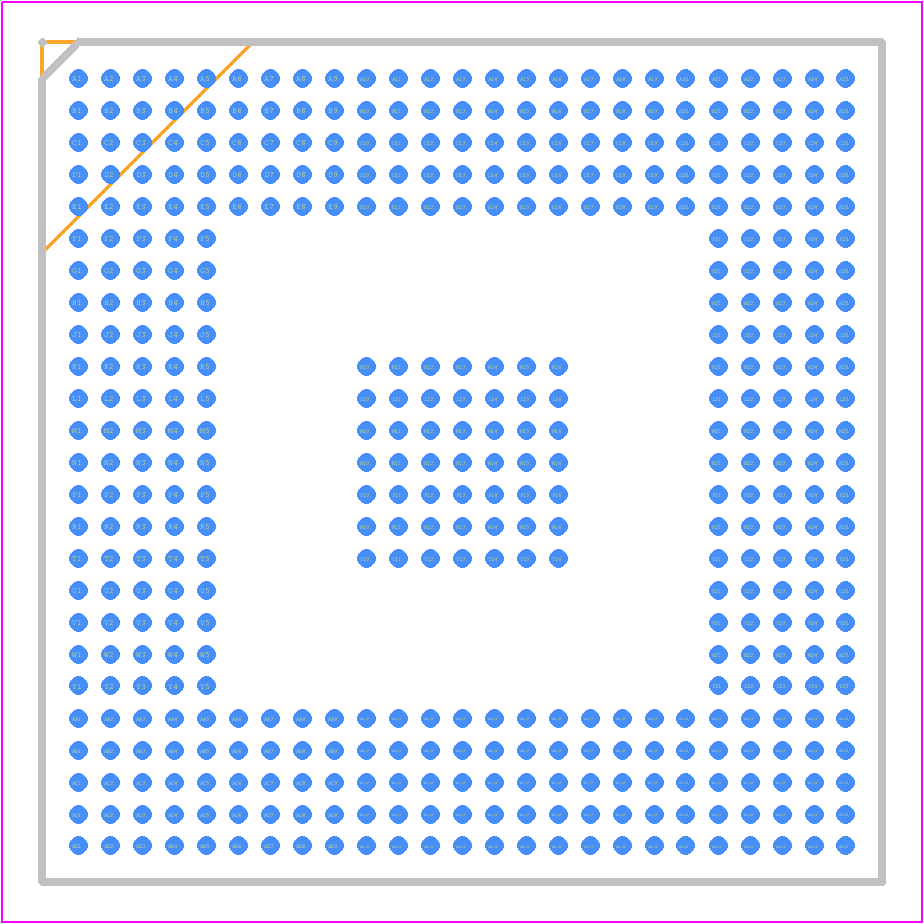

  21 X 21 MM, 0.80 MM PITCH, LEAD FREE, PLASTIC, FBGA-449

• Pin Count:

  449

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  NO

• Additional Feature:

  ALSO REQUIRES 3.3V I/O SUPPLY

• Address Bus Width:

  26

• Bit Size:

  32

• CPU Family:

  SH7000

• Clock Frequency-Max:

  33.4 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PBGA-B449

• Length:

  21 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  83

• Number of Terminals:

  449

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA449,25X25,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  16384

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2 mm

• Speed:

  402 MHz

• Supply Current-Max:

  1300 mA

• Supply Voltage-Max:

  1.35 V

• Supply Voltage-Min:

  1.15 V

• Supply Voltage-Nom:

  1.25 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  21 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
