R9A06G034VGBA#AC0 - Renesas Electronics

Description: Microprocessors - MPU SOC RZ/N1L 196PIN

Download R9A06G034VGBA#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R9A06G034VGBA#AC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

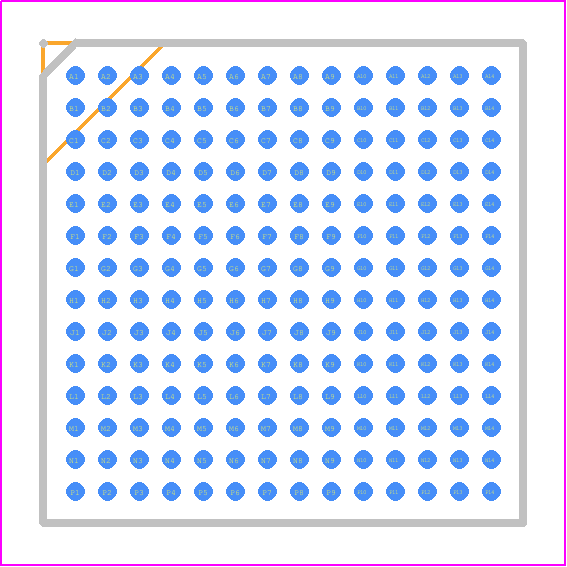

R9A06G034VGBA#AC0 - Renesas Electronics PCB footprint - BGA - BGA - PLBG0196GA-A
click to zoom
3D Models
R9A06G034VGBA#AC0 - Renesas Electronics - 3D model - BGA - PLBG0196GA-A
click to zoom

R9A06G034VGBA#AC0 Details

  • Manufacturer Part Number:

    R9A06G034VGBA#AC0

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    40 MHz

  • DMA Channels:

    YES

  • Length:

    12 mm

  • Number of I/O Lines:

    95

  • Number of Terminals:

    196

  • PWM Channels:

    NO

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Speed:

    125 MHz

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R9A06G034VGBA#AC0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R9A06G034VGBA#AC0 is -40°C to +85°C.
  • The clock settings for the R9A06G034VGBA#AC0 can be configured using the Clock Generator (CG) module. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum frequency of the R9A06G034VGBA#AC0's CPU is 240 MHz.
  • The R9A06G034VGBA#AC0 has 1024 KB (1 MB) of flash memory.
  • The power consumption of the R9A06G034VGBA#AC0 in sleep mode is typically around 1.5 μA/MHz, depending on the specific sleep mode and configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R9A06G034VGBA#AC0 Overview

Use the download button to access the R9A06G034VGBA#AC0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R9A06, or try a keyword search, such as Microcontrollers
