R9A06G034VGBA#AC1 - Renesas Electronics

R9A06G034VGBA#AC1 Details

• Manufacturer Part Number:

  R9A06G034VGBA#AC1

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  LFBGA

• Package Description:

  BGA-196

• Pin Count:

  196

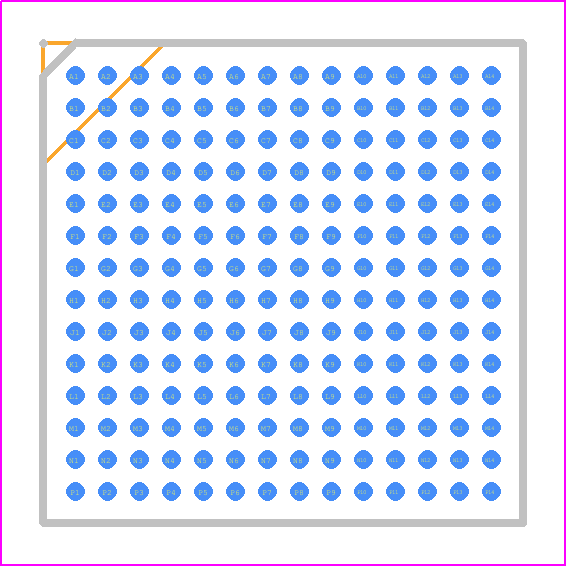

• Manufacturer Package Code:

  PLBG0196GA

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  40 MHz

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B196

• Length:

  12 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  10

• Number of Terminals:

  196

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  110 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA196,14X14,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• RAM (words):

  6291456

• Seated Height-Max:

  1.7 mm

• Speed:

  500 MHz

• Supply Voltage-Max:

  1.2 V

• Supply Voltage-Min:

  1.1 V

• Supply Voltage-Nom:

  1.15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
