R9A06G034VGBA footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

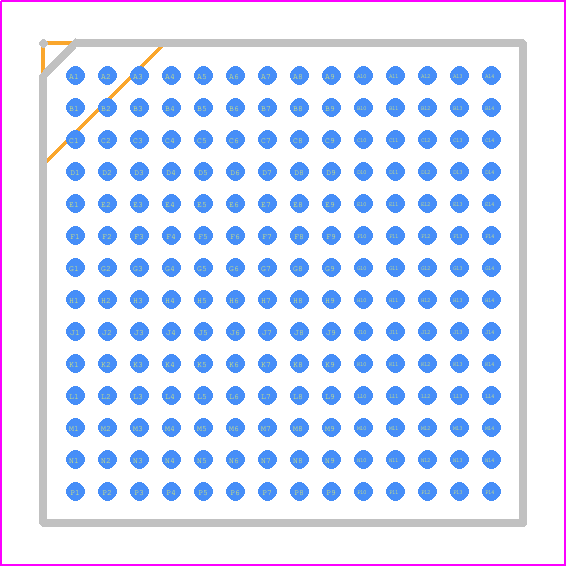

PCB Footprints

3D Models

R9A06G034VGBA Details

The recommended operating voltage range for the R9A06G034VGBA is 2.7V to 3.6V, with a typical voltage of 3.3V.
The clock settings for the R9A06G034VGBA can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet for specific register settings and bit configurations.
The maximum frequency of the R9A06G034VGBA's CPU is 32 MHz.
The R9A06G034VGBA's ADC can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register settings and conversion procedures.
The LVD is a built-in feature that detects when the voltage supply drops below a certain threshold (typically 2.2V). When this occurs, the LVD can generate a reset signal to prevent the MCU from operating erratically or unpredictably.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the R9A06G034VGBA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R9A06, or try a keyword search, such as Microprocessors
