RA-01SH - Ai-Thinker

Description: General ISM < 1GHz LoRa™ Transceiver Module 803MHz ~ 930MHz Antenna Not Included, I-PEX Surface Mount

Download RA-01SH Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this RA-01SH model

Email notifications will be applied after download.

Send part feedback

Symbol

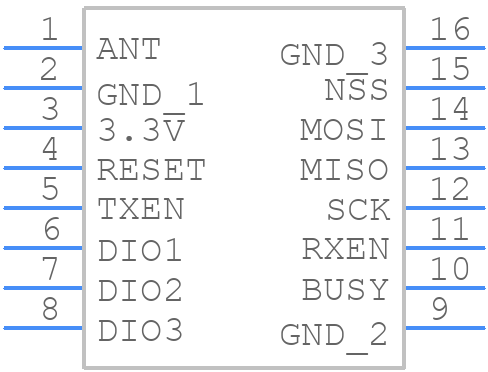

RA-01SH - Ai-Thinker - PCB symbol

PCB Footprints

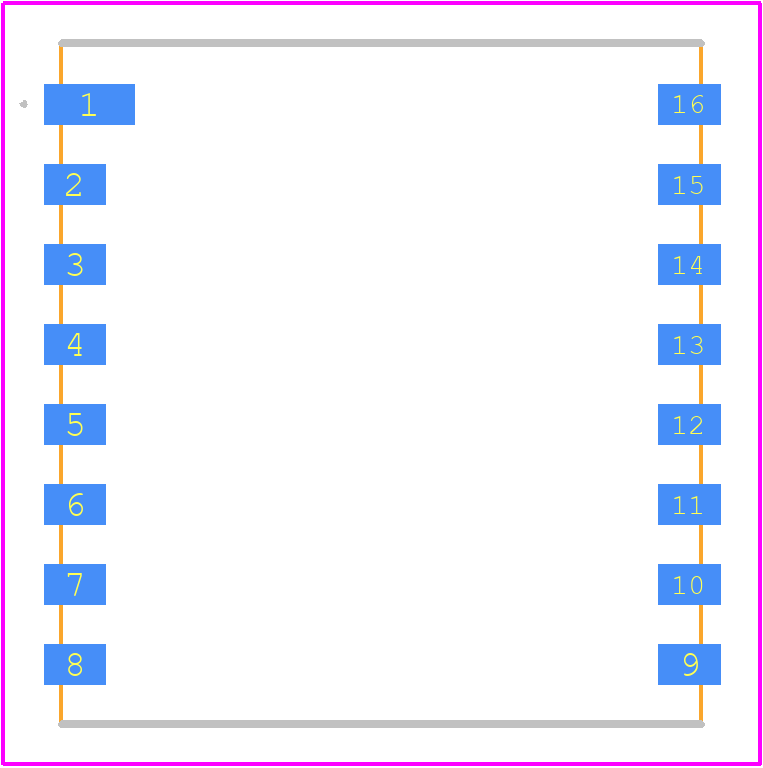

RA-01SH - Ai-Thinker PCB footprint - Other - Other - SMD16

3D Models

RA-01SH - Ai-Thinker - 3D model - Other - SMD16

Datasheet Download Datasheet
Stock & Prices Price & Stock for RA-01SH
Part Number RA-01SH
Manufacturer Ai-Thinker
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SMD16
Released Date Sep 4, 2024
Last Modified Date Sep 4, 2024 12:14 PM UTC
