The thermal resistance of the RA07M3847M-501 is typically around 2.5°C/W (junction-to-case) and 10°C/W (junction-to-ambient) at a maximum junction temperature of 150°C.
While the RA07M3847M-501 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
Mitsubishi Electric recommends a PCB layout with a large copper area for heat dissipation, and thermal vias to improve heat transfer. A thermal interface material (TIM) can also be used to reduce thermal resistance between the device and the heat sink.
To ensure reliability and longevity, follow proper design and assembly guidelines, including derating the device's power rating, using a suitable heat sink, and implementing overvoltage and overcurrent protection. Regular cleaning and maintenance of the device and its surroundings are also recommended.
Yes, the RA07M3847M-501 can be used in a parallel configuration to increase power handling, but it's essential to ensure that the devices are properly matched and synchronized to prevent uneven current sharing and potential reliability issues.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
RA07M3847M-501 Overview

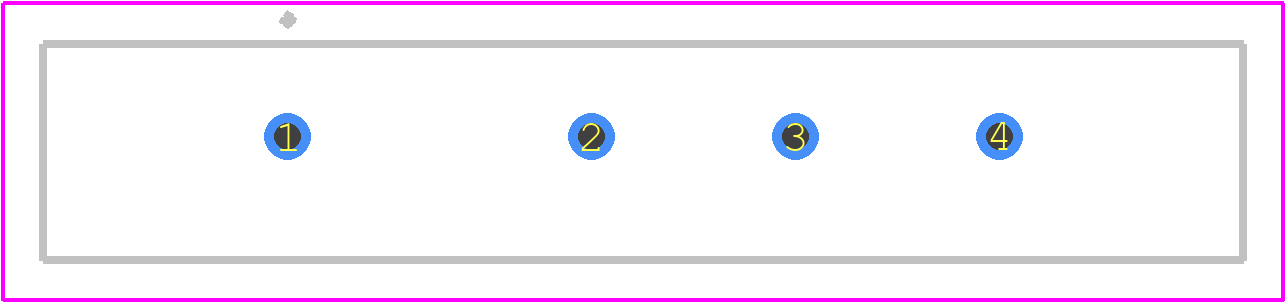

Use the download button to access the RA07M3847M-501 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RA07M,
or try a keyword search, such as RF/Microwave Amplifiers
