RA6992-BL footprint, schematic symbol and 3D model by COILCRAFT

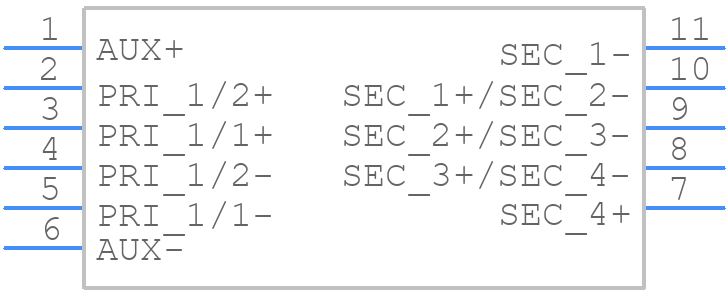

Symbol

click to zoom

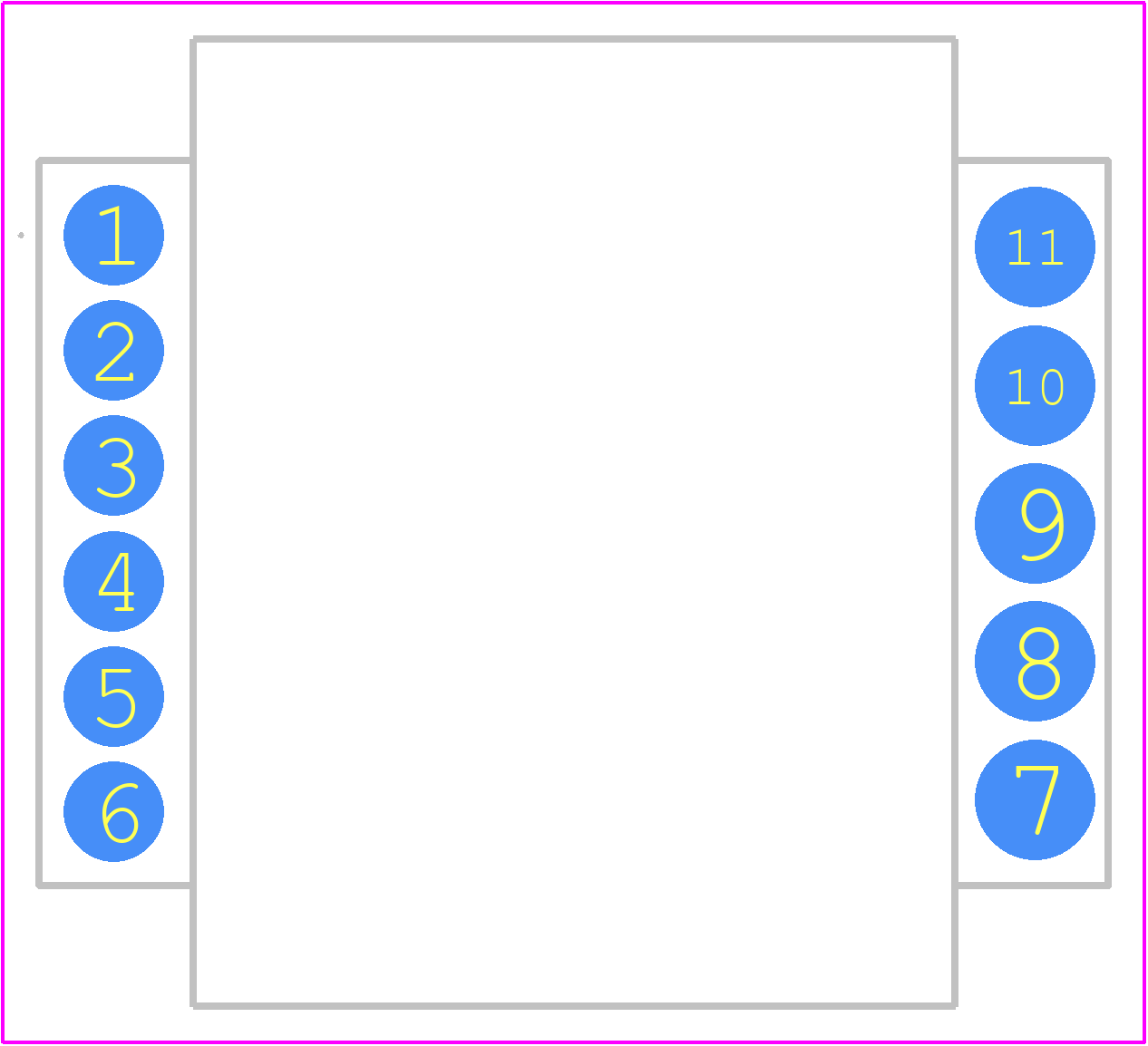

PCB Footprints

RA6992-BL - COILCRAFT PCB footprint - Other - Other - RA6992-BL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RA6992-BL
Part Number RA6992-BL
Manufacturer COILCRAFT
Pin Count 11
Part Category Transformer
Package Category Other
Footprint Name Other - RA6992-BL-1
Released Date Jul 29, 2025
Last Modified Date Jul 29, 2025 8:15 PM UTC
Pinout / Pin List Click Here (Member Only)

RA6992-BL Details

Manufacturer Part Number:
RA6992-BL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
7.18
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Application:
GENERAL PURPOSE
ET Product-Min:
206 V-us
Height:
12.1 mm
Input Voltage-Max:
60 V
Input Voltage-Min:
48 V
Isolation Voltage:
1500 V
JESD-609 Code:
e3
Length:
29.46 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Primary Winding:
2
Number of Secondary Winding:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Packing Method:
TRAY
Power Rating:
250 W
Primary Inductance:
50 µH
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Transformer Type:
SMPS TRANSFORMER
Turns Ratio (Np:Ns):
8T:4T
Width:
26.67 mm

RA6992-BL Frequently Asked Questions (FAQs)

Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is designed to ensure optimal performance and minimize parasitic effects.
To minimize high frequency noise and EMI, it's recommended to use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and placing the inductor away from noise sources. Additionally, using a common-mode choke or a ferrite bead can help filter out high frequency noise.
The RA6992-BL is rated for operation from -40°C to +125°C, but derating may be necessary for high-current applications or extreme environmental conditions. Consult the datasheet and application notes for more information.
While the RA6992-BL is a high-quality component, it may not meet the specific requirements for high-reliability or aerospace applications. Coilcraft offers other products that are specifically designed for these applications, such as their HP and AS series inductors.
The optimal inductance value depends on the specific requirements of your application, including the operating frequency, current, and voltage. Coilcraft provides a range of inductance values for the RA6992-BL, and their application notes and design tools can help you determine the best value for your specific application.

Trust Checks

Community Provided

System Verified

Community Approved

RA6992-BL Overview

Use the download button to access the RA6992-BL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RA699, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
