Part Image

RA6998-BLD - COILCRAFT

Description: Audio Transformers / Signal Transformers RA6996 40W 0.015Ohms For MAX17599

Download RA6998-BLD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

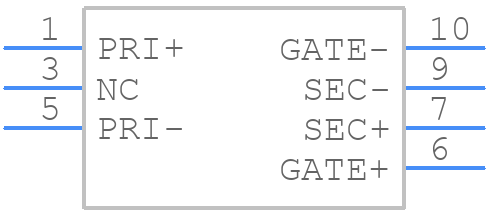

Symbol
RA6998-BLD - COILCRAFT - PCB symbol
click to zoom

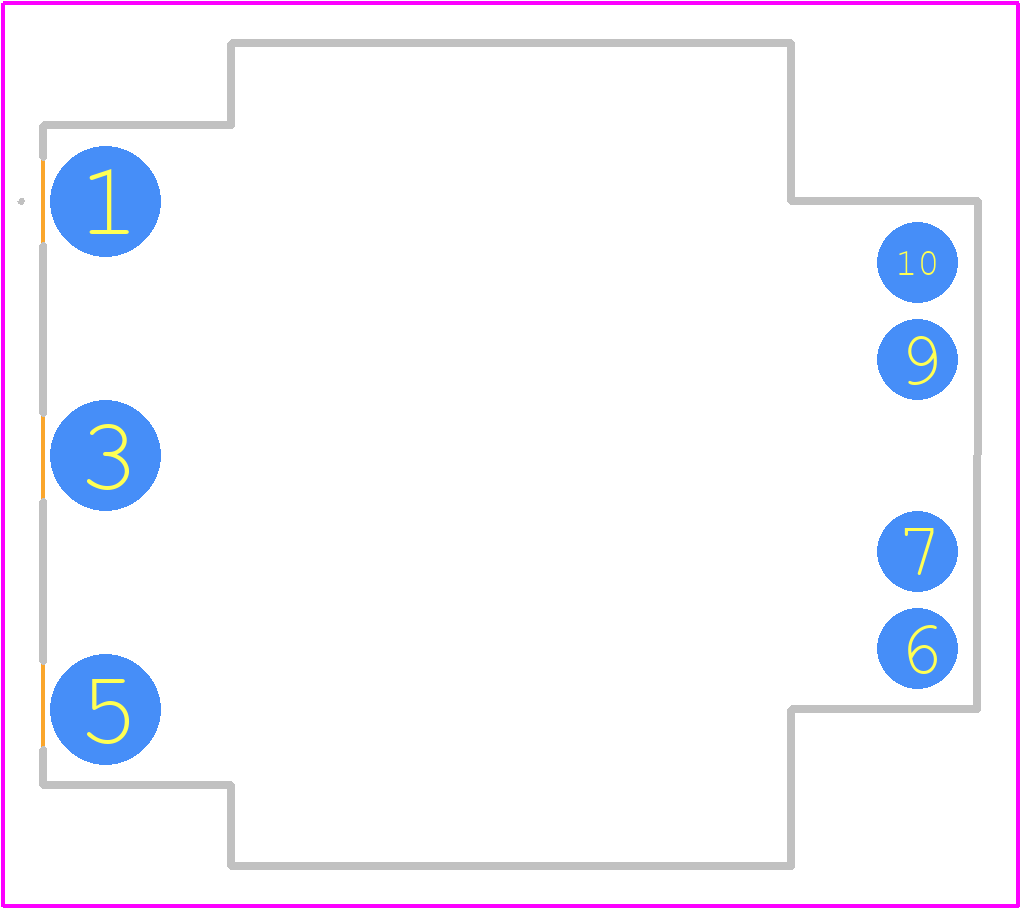

PCB Footprints
RA6998-BLD - COILCRAFT PCB footprint - Other - Other - RA6998-BLD-2
click to zoom
3D Models
RA6998-BLD - COILCRAFT - 3D model - Other - RA6998-BLD-2
click to zoom

RA6998-BLD Details

  • Manufacturer Part Number:

    RA6998-BLD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Additional Feature:

    LENGTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO

  • Height:

    9.14 mm

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • JESD-609 Code:

    e3

  • Length:

    23.37 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Primary Inductance:

    80 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.57 mm

RA6998-BLD Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application note AN300, which can be found on their website. The land pattern is designed to ensure optimal performance and reliability of the inductor.
  • The RA6998-BLD has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management in your design. This includes providing adequate airflow, using thermal vias, and keeping the inductor away from heat sources.
  • The SRF of the RA6998-BLD is not explicitly stated in the datasheet. However, Coilcraft provides an SRF calculator tool on their website, which can be used to estimate the SRF based on the inductor's characteristics and operating conditions.
  • The RA6998-BLD is designed to meet the vibration requirements of IEC 60068-2-6, which includes vibration testing up to 10 G. However, it's essential to evaluate the inductor's performance in your specific application and consider additional mechanical stress testing if necessary.
  • Coilcraft provides a reliability report for the RA6998-BLD, which includes information on the inductor's testing and qualification process. Additionally, it's essential to follow proper storage, handling, and assembly procedures to ensure the inductor's reliability in high-reliability applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RA6998-BLD Overview

Use the download button to access the RA6998-BLD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RA699, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
