Description:The RAA210610 power module is a single-channel, synchronous step-down, non-isolated complete power supply, capable of delivering up to 15A of continuous current. Operating from a single 7V to 54V wide input power rail and integrating the controller, power inductor, and MOSFETs, the RAA210610 requires only a few external components to operate and is optimized for space constrained applications. The RAA210610 offers an adjustable output voltage range of 0. 6V to 42V with better than 1. 5% accuracy over line,
Renesas provides a recommended PCB layout guide for the RAA2106104GLG#AD0, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's available on the Renesas website or through their support team.
The RAA2106104GLG#AD0 has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to set the OCP (Overcurrent Protection) pin high and configure the OCP threshold using the device's registers. Refer to the datasheet and application notes for more details.
The recommended input capacitor value and type for the RAA2106104GLG#AD0 depends on the specific application and operating conditions. As a general guideline, Renesas recommends using a low-ESR ceramic capacitor with a value between 10uF to 22uF. However, it's recommended to consult with Renesas support or perform simulations to determine the optimal input capacitor value and type for your specific design.
To troubleshoot the thermal shutdown feature of the RAA2106104GLG#AD0, you can use a thermal camera or thermocouple to monitor the device's temperature. Check the device's thermal shutdown threshold and hysteresis settings, and ensure that the device is properly soldered and mounted on the PCB. If the issue persists, consult Renesas support for further assistance.
The maximum allowed voltage on the enable pin of the RAA2106104GLG#AD0 is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a buffer circuit to ensure that the enable pin voltage remains within the specified range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAA2106104GLG#AD0 Overview

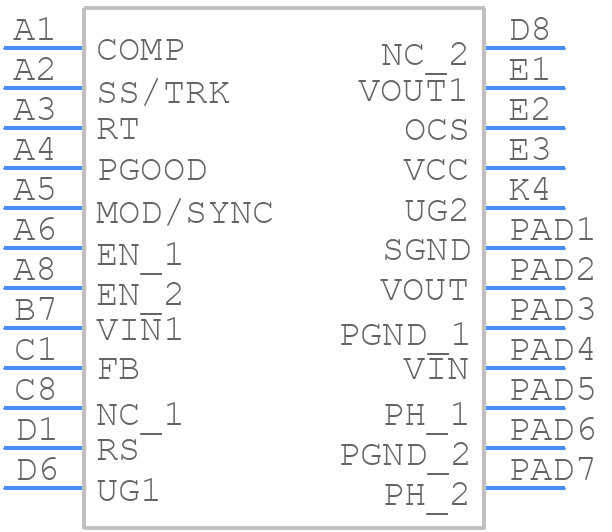

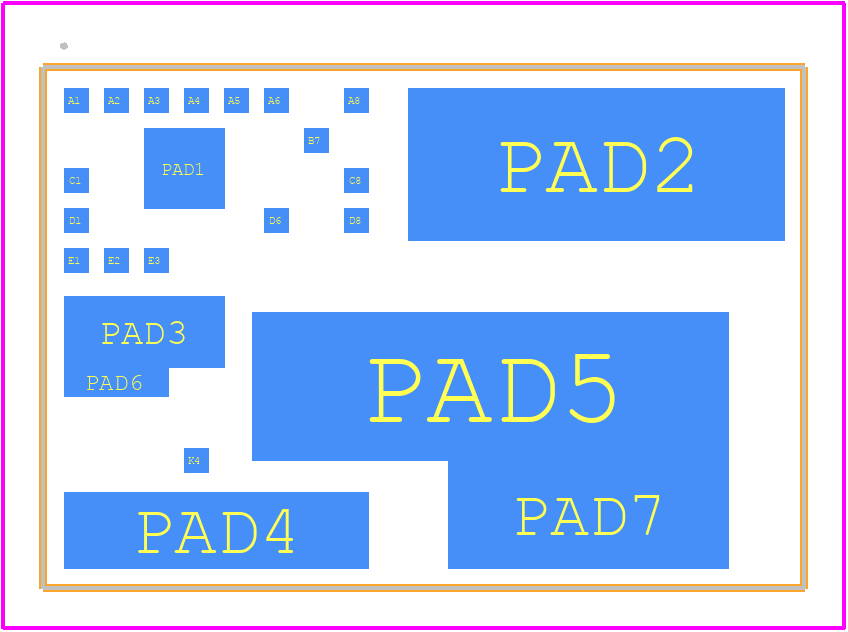

Use the download button to access the RAA2106104GLG#AD0 schematic symbol, PCB footprint, and 3D model.
