Description:The RAA211630 is a DC/DC synchronous step-down (Buck) regulator that supports a 4.5V to 60V input voltage range and adjustable output voltage. It can deliver up to 3A of continuous output current with premium load and line regulation performance.The RAA211630 uses peak-current mode control architecture. Its PWM switching frequency is programmable to provide the best trade-off between transient response and efficiency. It also supports PFM operation and DEM to maximize light-load efficiency, in addition to a
Renesas provides a reference design guide and thermal design guide for the RAA211630GSP#HA0, which includes recommendations for PCB layout, thermal vias, and heat sink design. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal management.
To optimize power consumption and reduce heat generation, engineers can implement power-saving modes, adjust the clock frequency, and optimize the device's operating voltage. Additionally, using a high-efficiency power supply and optimizing the system's thermal design can also help reduce heat generation.
Renesas provides a testing and validation guide for the RAA211630GSP#HA0, which includes recommendations for environmental testing, electrical testing, and reliability testing. Engineers should follow these guidelines to ensure the device meets the required specifications and reliability standards.
Renesas provides a secure boot and firmware update guide for the RAA211630GSP#HA0, which includes recommendations for implementing secure boot mechanisms, encrypting firmware, and using secure communication protocols. Engineers should follow these guidelines to ensure the device's firmware and data remain secure.
Engineers should consult the datasheet and application notes for compatibility and interoperability information. Additionally, Renesas provides a compatibility and interoperability guide that outlines the device's compatibility with various operating systems, peripherals, and other components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAA211630GSP#HA0 Overview

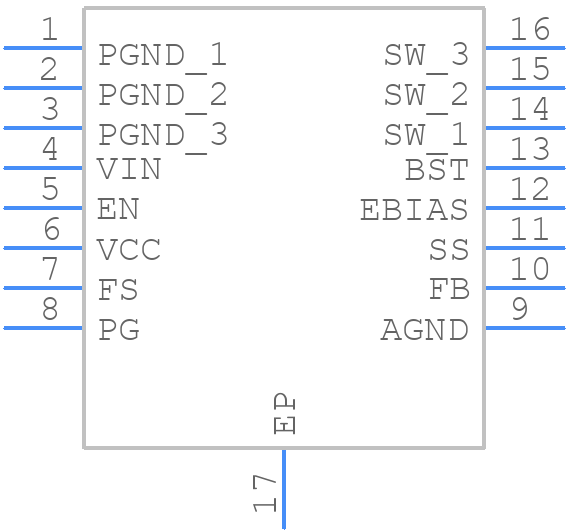

Use the download button to access the RAA211630GSP#HA0 schematic symbol, PCB footprint, and 3D model.
