Description:The RAA211835 is a DC/DC asynchronous step-down (Buck) regulator that supports a 4.5V to 75V input voltage range and adjustable output voltage. It can deliver up to continuous 3A of continuous output current with premium load and line regulation performance.The RAA211835 uses peak-current mode control architecture. Its PWM switching frequency is programmable to provide the best trade-off between transient response and efficiency. It also supports PFM operation to maximize light load efficiency, in addition
Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, heat sinks, and copper pours, to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The datasheet provides guidelines for selecting the current sense resistor value and implementing the protection circuit.
The recommended startup sequence involves powering up the device in a specific order, including the power supplies, clock signals, and enable signals. Renesas provides a detailed startup sequence in their application note (APL-AN-1202) to ensure proper device operation.
Renesas recommends checking the power supply voltage, clock signal, and reset signal to ensure they are within the specified ranges. Additionally, verifying the POR circuit's timing and voltage thresholds can help identify and resolve issues.
The RAA211835GSP#HA0 is available in a 40-pin QFN package, which requires careful thermal design consideration. Renesas recommends using thermal vias, heat sinks, and copper pours to dissipate heat and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAA211835GSP#HA0 Overview

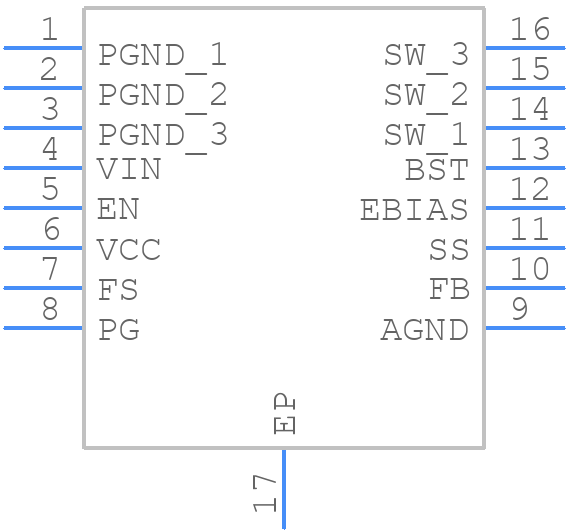

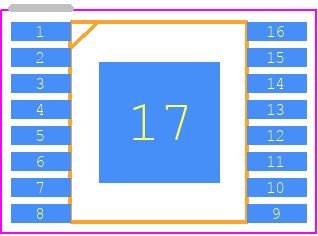

Use the download button to access the RAA211835GSP#HA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAA21,
or try a keyword search, such as Switching Regulator or Controllers
