RAA2144014GP3#NA0 - Renesas Electronics

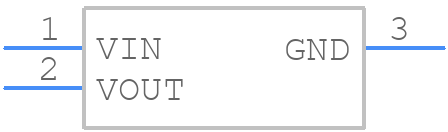

RAA2144014GP3#NA0 Details

• Manufacturer Part Number:

  RAA2144014GP3#NA0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOT23

• Package Description:

  SOT-23, 3 PIN

• Pin Count:

  3

• Manufacturer Package Code:

  P3.064B

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  1.6 V

• Dropout Voltage1-Nom:

  1.37 V

• Input Voltage Absolute-Max:

  45 V

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  4.5 V

• JESD-30 Code:

  R-PDSO-G3

• JESD-609 Code:

  e3

• Length:

  2.9 mm

• Line Regulation-Max:

  0.0058575%

• Load Regulation-Max(%):

  0.0296802%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  3

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.15 A

• Output Voltage1-Max:

  3.39 V

• Output Voltage1-Min:

  3.2 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  TO-236

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.37 mm

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  1.6 mm
