Description:The RAA223010 is a universal input AC/DC switching buck regulator with ultra-low standby power that features a 700V integrated MOSFET capable of delivering 10W output power. It supports output voltage as low as 3.3V.The RAA223010 combines constant off-time control for heavy load and Pulse Frequency Modulation (PFM) for light-load operation. Constant off-time controls switching frequency above the audible frequency around 45kHz. PFM eliminates any potential noises while offering superior light-load efficienc
Renesas provides a recommended PCB layout guide in their application note (AP6111) for the RAA2230104GSP#HA1. It suggests using a 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions and thermal design guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 7V. Exceeding this voltage can cause permanent damage to the device.
Yes, the RAA2230104GSP#HA1 is AEC-Q100 qualified, making it suitable for automotive applications. However, it's crucial to ensure that the device meets the specific requirements of your application, including temperature, voltage, and reliability.
To troubleshoot issues with the output current, check the input voltage, output voltage, and load current. Ensure that the device is operated within the recommended conditions, and verify that the output current is within the specified range. If issues persist, consult the datasheet or contact Renesas support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAA2230104GSP#HA1 Overview

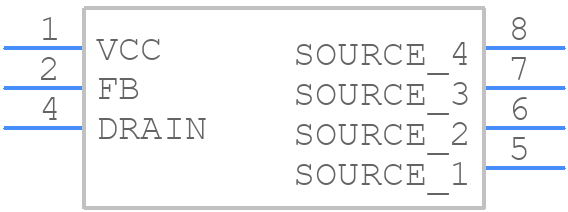

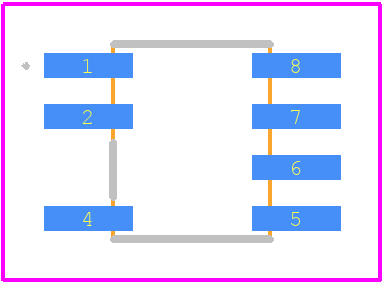

Use the download button to access the RAA2230104GSP#HA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAA22,
or try a keyword search, such as Switching Regulator or Controllers
