Renesas provides a reference design guide for the RAA230133GSB#HA0, which includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and electromagnetic compatibility.
The RAA230133GSB#HA0 has built-in overcurrent protection and fault detection features. However, additional external circuitry may be required to implement a comprehensive protection scheme. Renesas provides application notes and design guides that outline recommended implementation methods.
The recommended settings for the internal oscillator and clock configuration can be found in the RAA230133GSB#HA0 user manual and application notes. It's essential to follow these guidelines to ensure proper device operation and minimize electromagnetic interference.
Renesas provides guidelines for optimizing the RAA230133GSB#HA0 for low power consumption and minimizing standby current in the device's datasheet and application notes. This includes configuring the device's power modes, clock frequencies, and peripheral usage.
Renesas recommends following standard ESD protection and handling procedures for the RAA230133GSB#HA0, including using anti-static wrist straps, mats, and packaging materials. Additionally, the device should be handled in a controlled environment with minimal exposure to electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAA230133GSB#HA0 Overview

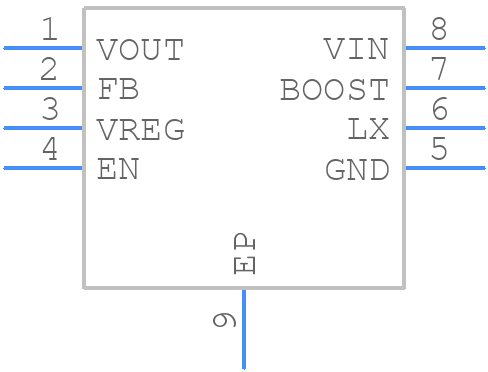

Use the download button to access the RAA230133GSB#HA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAA23,
or try a keyword search, such as Switching Regulator or Controllers
