Renesas provides a reference design guide for the RAA230151GSB, which includes recommendations for PCB layout, thermal management, and heat sink design. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and reliability.
The RAA230151GSB has built-in overcurrent protection and fault detection features. However, to implement these features, you need to connect the OCP (Overcurrent Protection) pin to a suitable resistor and capacitor network, and monitor the FLT (Fault) pin for fault detection. Renesas provides application notes and design guides that explain the implementation details.
The input capacitor selection and placement are critical for the RAA230151GSB's performance and stability. Renesas recommends using a low-ESR capacitor with a value between 10uF to 22uF, placed as close as possible to the VIN pin. The capacitor should be rated for the maximum input voltage and have a suitable temperature rating.
The switching frequency and dead time of the RAA230151GSB can be optimized for specific applications by adjusting the RT (Oscillator Timing) pin and the DT (Dead Time) pin. Renesas provides guidelines and equations in the datasheet to help optimize these parameters. Additionally, simulation tools and application notes can provide further guidance.
For high-power applications, thermal design is critical to ensure the RAA230151GSB's reliability and performance. Renesas recommends using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. The PCB design should also consider thermal vias, thermal layers, and heat spreaders to dissipate heat effectively.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAA230151GSB#HA0 Overview

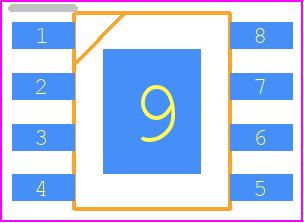

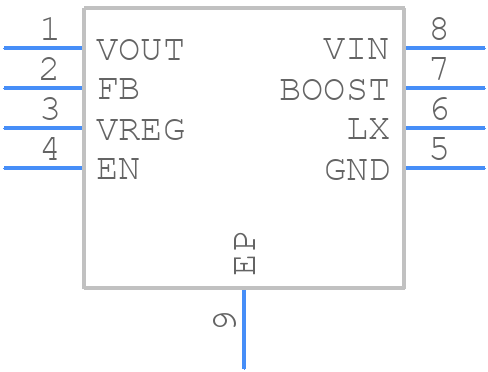

Use the download button to access the RAA230151GSB#HA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAA23,
or try a keyword search, such as Switching Regulator or Controllers
