RAA230153GSB#HA0 footprint, schematic symbol and 3D model by Renesas Electronics

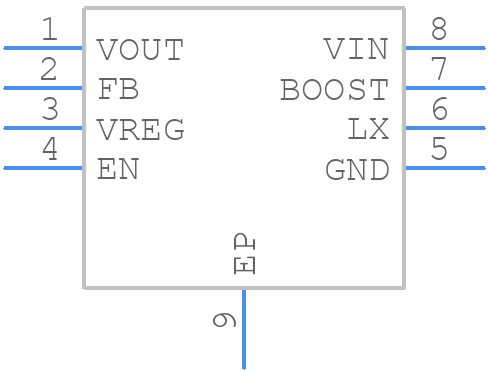

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RAA230153GSB#HA0
Part Number RAA230153GSB#HA0
Manufacturer Renesas Electronics
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8pin HLSOP-1
Released Date Dec 1, 2019
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

RAA230153GSB#HA0 Details

Manufacturer Part Number:
RAA230153GSB#HA0
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
HLSOP-8
Manufacturer Package Code:
PLSP0008DB
ECCN Code:
5A002
HTS Code:
8542.39.00.60
Factory Lead Time:
52 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Additional Feature:
PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE
Analog IC - Other Type:
BATTERY CHARGE CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
28 V
Input Voltage-Min:
7 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDSO-G8
Length:
4.93 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
6 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOP
Package Equivalence Code:
SOP8,.23
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Seated Height-Max:
1.68 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1100 kHz
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.94 mm

RAA230153GSB#HA0 Frequently Asked Questions (FAQs)

Renesas provides a reference design guide for the RAA230153GSB, which includes recommendations for PCB layout, thermal management, and heat sink design. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
The RAA230153GSB has built-in overcurrent protection and fault detection features. However, to implement these features, you'll need to use external components and programming. Renesas provides application notes and code examples to help you implement these features.
Renesas recommends a specific power-up and power-down sequence to ensure proper operation and prevent damage to the device. This sequence is typically outlined in the device's application notes or user manuals.
To optimize the RAA230153GSB for low-power or low-voltage operation, you'll need to adjust the device's configuration and operating parameters. Renesas provides guidance on how to do this in the device's datasheet and application notes.
The recommended settings for the RAA230153GSB's internal registers and configuration bits depend on the specific application and use case. Renesas provides default settings and configuration examples in the device's datasheet and application notes.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RAA230153GSB#HA0 Overview

Use the download button to access the RAA230153GSB#HA0 schematic symbol, PCB footprint, and 3D model.
