RAA2P4520EVHSP#HA0 - Renesas Electronics

Description: The RAA2P4520 is a high-speed, magnet-free inductive position sensor IC designed for absolute rotary position sensing in safety-critical automotive motor control applications. It operates on the principle of eddy currents, detecting the position of a simple metallic target moving above a set of coils, consisting of one transmitter coil and four receiver coils.This configuration enables precise and redundant measurement of two independent angles. The device supports a high-speed single-wire UART interface wi

Download RAA2P4520EVHSP#HA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

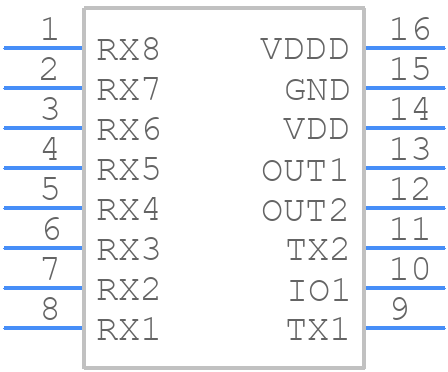

RAA2P4520EVHSP#HA0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
RAA2P4520EVHSP#HA0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 16-TSSOP Package Outline Drawing-1
click to zoom
3D Models
RAA2P4520EVHSP#HA0 - Renesas Electronics - 3D model - Small Outline Packages - 16-TSSOP Package Outline Drawing-1
click to zoom

RAA2P4520EVHSP#HA0 Details

  • Manufacturer Part Number:

    RAA2P4520EVHSP#HA0

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,INDUCTIVE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RAA2P4520EVHSP#HA0 Overview

Use the download button to access the RAA2P4520EVHSP#HA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAA2P, or try a keyword search, such as Linear Position Sensors
