RAA7301014CBG#HC0 - Renesas Electronics

Description: Smart Analog IC101 has a built-in 16-bit delta-sigma (ΔΣ) A/D converter and programmable gain amplifier and is suitable for industrial applications.Highly integrated analog front-end for bridge sensor reduces the number of componentsEasy expansion of host MCU variation reduces development timeSuitable for small, low-cost, and reliable sensor modules, reduces PCB areaThe RAA730101 is a 16-bit ΔΣ A/D converter IC with a programmable gain instrumentation amplifier ideal for differential output sensors used for

Download RAA7301014CBG#HC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

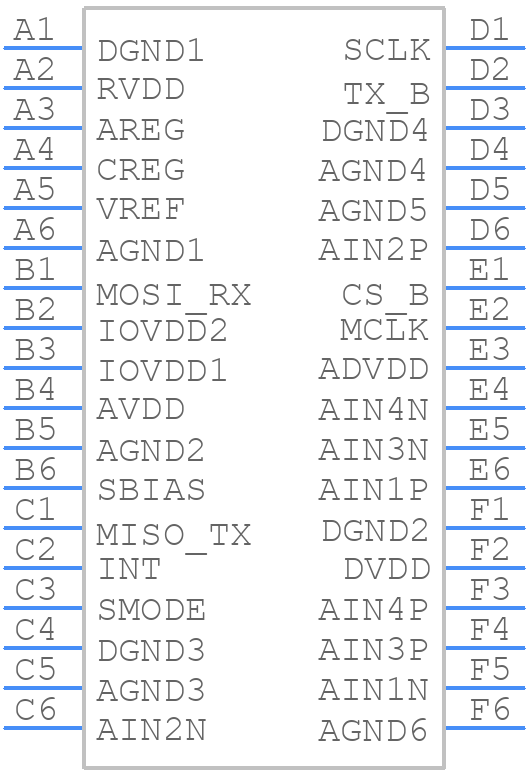

RAA7301014CBG#HC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
RAA7301014CBG#HC0 - Renesas Electronics PCB footprint - BGA - BGA - P-TFBGA36-4x4-0.50
click to zoom
3D Models
RAA7301014CBG#HC0 - Renesas Electronics - 3D model - BGA - P-TFBGA36-4x4-0.50
click to zoom

RAA7301014CBG#HC0 Details

  • Manufacturer Part Number:

    RAA7301014CBG#HC0

  • Brand Name:

    Renesas

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TFBGA

  • Pin Count:

    36

  • Manufacturer Package Code:

    PTBG0036KA-A36

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RAA7301014CBG#HC0 Overview

Use the download button to access the RAA7301014CBG#HC0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAA73, or try a keyword search, such as Other Signal Circuits
