SHORT CIRCUIT; OVER CURRENT; OVER VOLTAGE; THERMAL
Ripple Voltage (Main Out):
0.04242 Vrms
Seated Height-Max:
15.6 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
3 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.015 s
Width:
24 mm
RAC03E-05SK/277 Frequently Asked Questions (FAQs)
RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure EMC, RECOM Power Inc recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet relevant EMC standards.
The derating curve for RAC03E-05SK/277 is typically provided in the datasheet or can be obtained from RECOM Power Inc directly. It shows the reduction in output power as a function of ambient temperature, and is used to ensure the module operates within its safe operating area.
Yes, the RAC03E-05SK/277 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including synchronization, current sharing, and fault detection.
RECOM Power Inc provides reliability and MTBF estimates for the RAC03E-05SK/277 in the datasheet or upon request. These estimates are based on accelerated life testing and industry-standard models, and can be used to predict the module's reliability in a given application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC03E-05SK/277 Overview

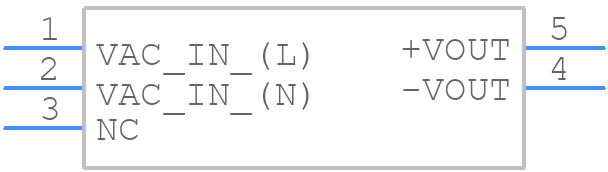

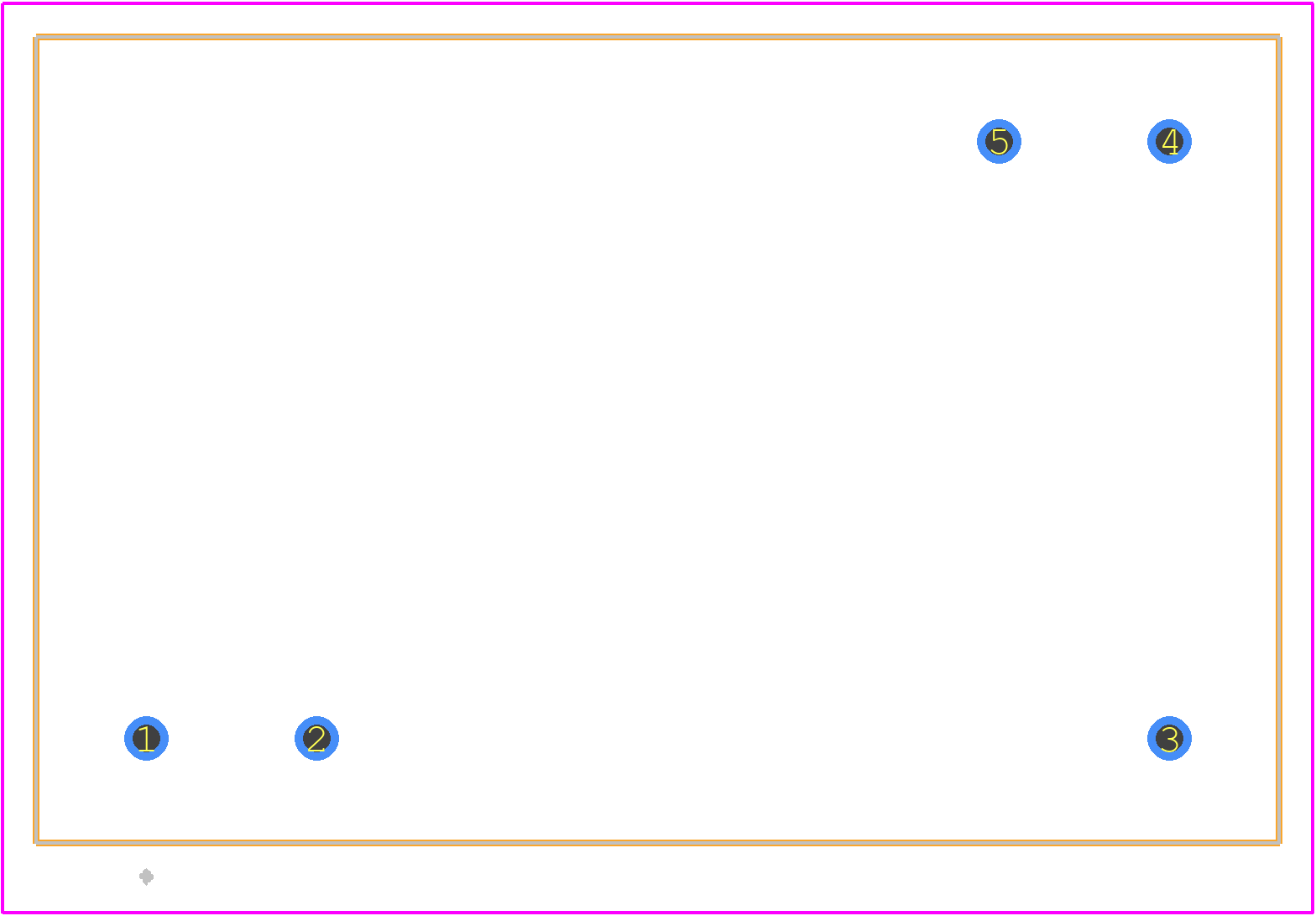

Use the download button to access the RAC03E-05SK/277 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC03,
or try a keyword search, such as Power Supply Modules
