ALSO -5V OUTPUT AVAILABLE; ALSO REQUIRE 113-373VDC INPUT
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
264 V
Input Voltage-Min:
80 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-PDMA-P7
Length:
36.7 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
7
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-38 °C
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
17.6 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
4 W
Trim/Adjustable Output:
NO
Width:
27.2 mm
RAC04-05DC/230 Frequently Asked Questions (FAQs)
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RAC04-05DC/230 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screwing of the module to the PCB to prevent damage.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, rated for the input voltage range, to ensure stable operation and minimize input ripple.
Yes, it is possible to parallel multiple modules to increase the output power. However, it's essential to ensure that the modules are identical, and the output voltages are matched to within 1% to prevent current imbalance and reduce the risk of damage.
The typical efficiency of the RAC04-05DC/230 module is around 85% to 90% depending on the input voltage, output load, and operating temperature. Refer to the datasheet for detailed efficiency curves.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC04-05DC/230 Overview

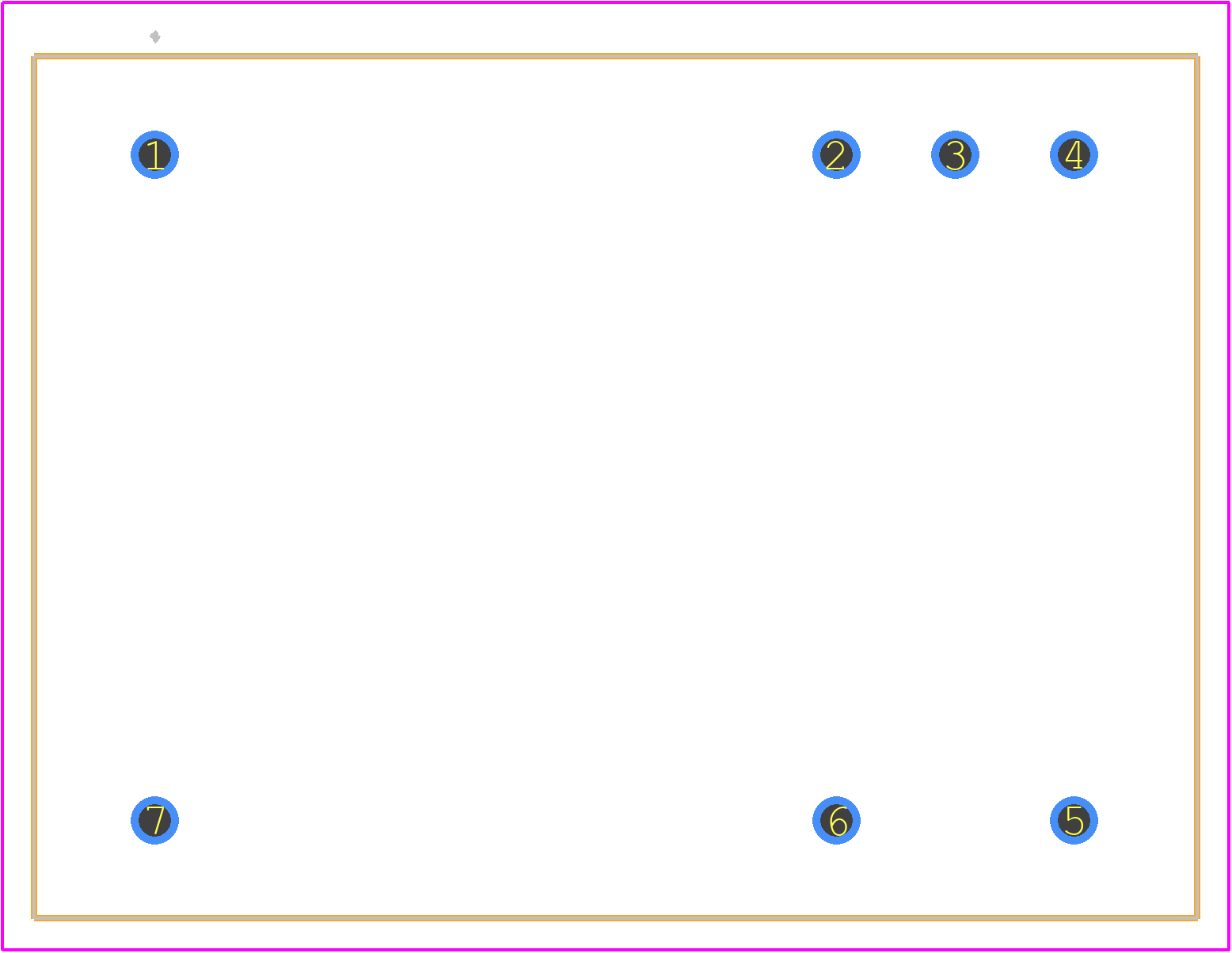

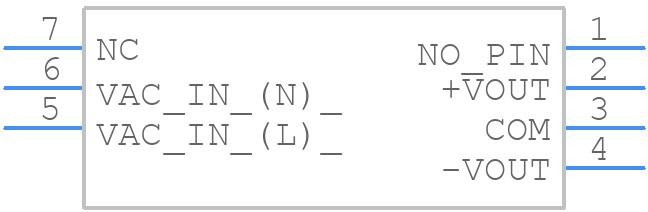

Use the download button to access the RAC04-05DC/230 schematic symbol, PCB footprint, and 3D model.
