RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the RAC04-05DC/277 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screw torque guidelines to ensure reliable operation.
To ensure EMC, RECOM recommends following proper PCB layout and design guidelines, using a metal enclosure, and adding EMI filters or shielding if necessary. The module itself is designed to meet EN 55022 Class B and EN 55024 standards.
RECOM recommends using a fuse with a rating of 2A to 5A, depending on the specific application and input voltage. The fuse should be able to handle the maximum input current of the module, which is 1.5A for the RAC04-05DC/277.
Yes, the RAC04-05DC/277 can be used in redundant or parallel configurations to achieve higher power output or redundancy. However, it's essential to follow proper design and layout guidelines to ensure reliable operation and avoid electrical noise or interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC04-05DC/277 Overview

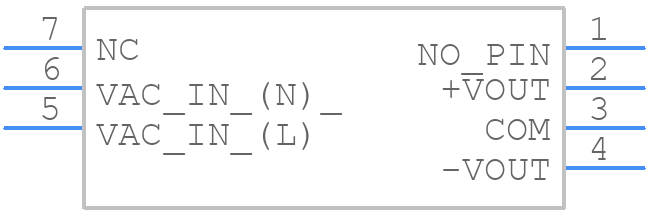

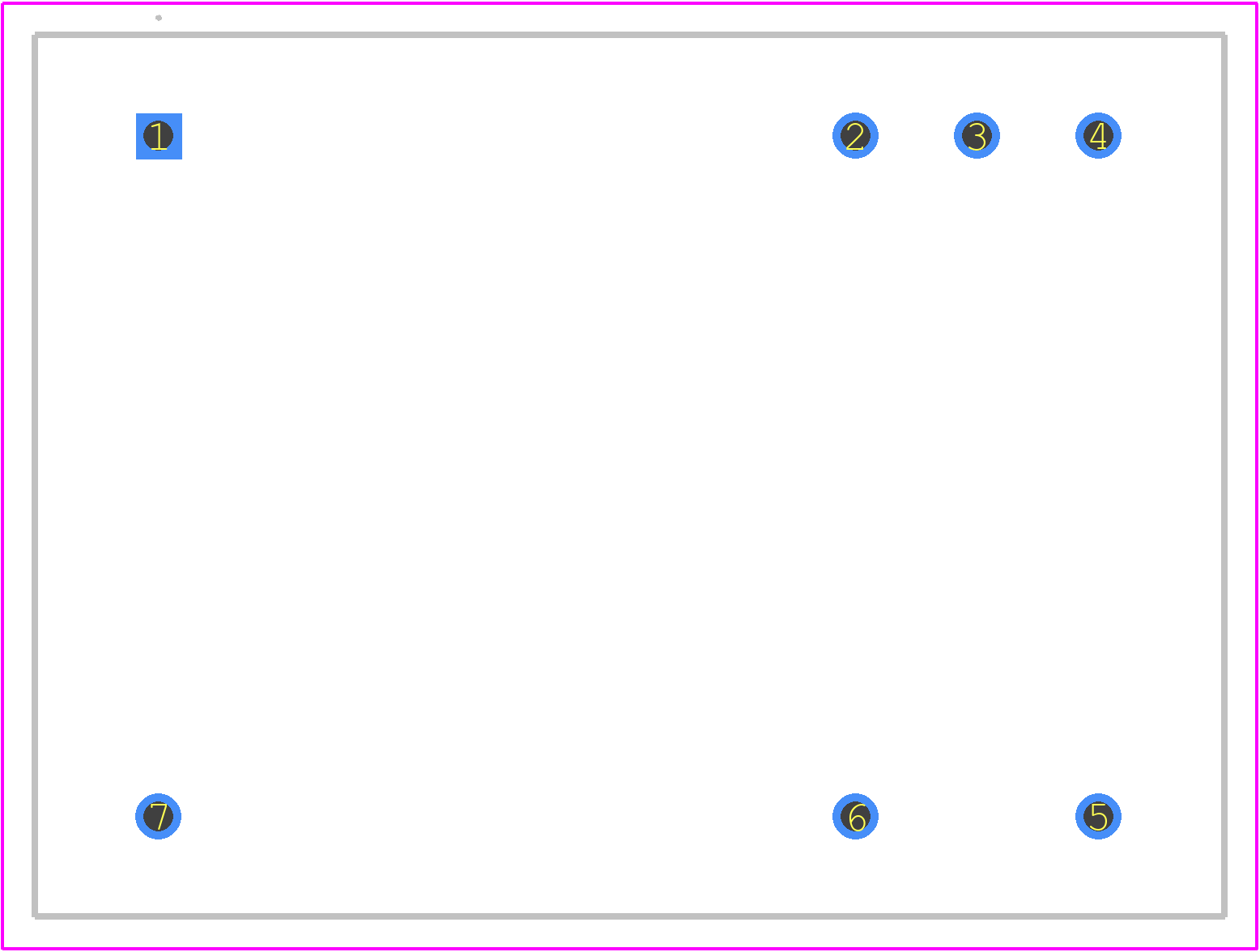

Use the download button to access the RAC04-05DC/277 schematic symbol, PCB footprint, and 3D model.
