The recommended PCB layout for optimal thermal performance involves placing the converter on a multi-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of components to ensure good airflow.
The RAC04-05SC/277-E is certified to UL/IEC/EN 62368-1 and meets the requirements for CE marking. However, it's essential to ensure that the converter is used within its specified operating conditions and that the system design meets the relevant safety standards for the intended application.
The recommended input fuse rating for the RAC04-05SC/277-E is 1A slow-blow. However, the actual fuse rating may vary depending on the specific application and system requirements.
The RAC04-05SC/277-E is rated for operation up to 80°C ambient temperature. However, derating may be necessary for high-temperature applications. It's essential to consult the datasheet and application notes for guidance on thermal derating and heat sink requirements.
To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and ambient temperature. Ensure that the converter is operated within its specified conditions, and verify that the output voltage is within the specified tolerance. If issues persist, consult the application notes and contact RECOM Power Inc's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC04-05SC/277-E Overview

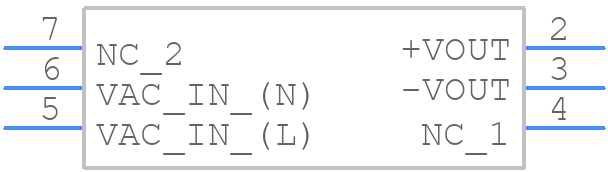

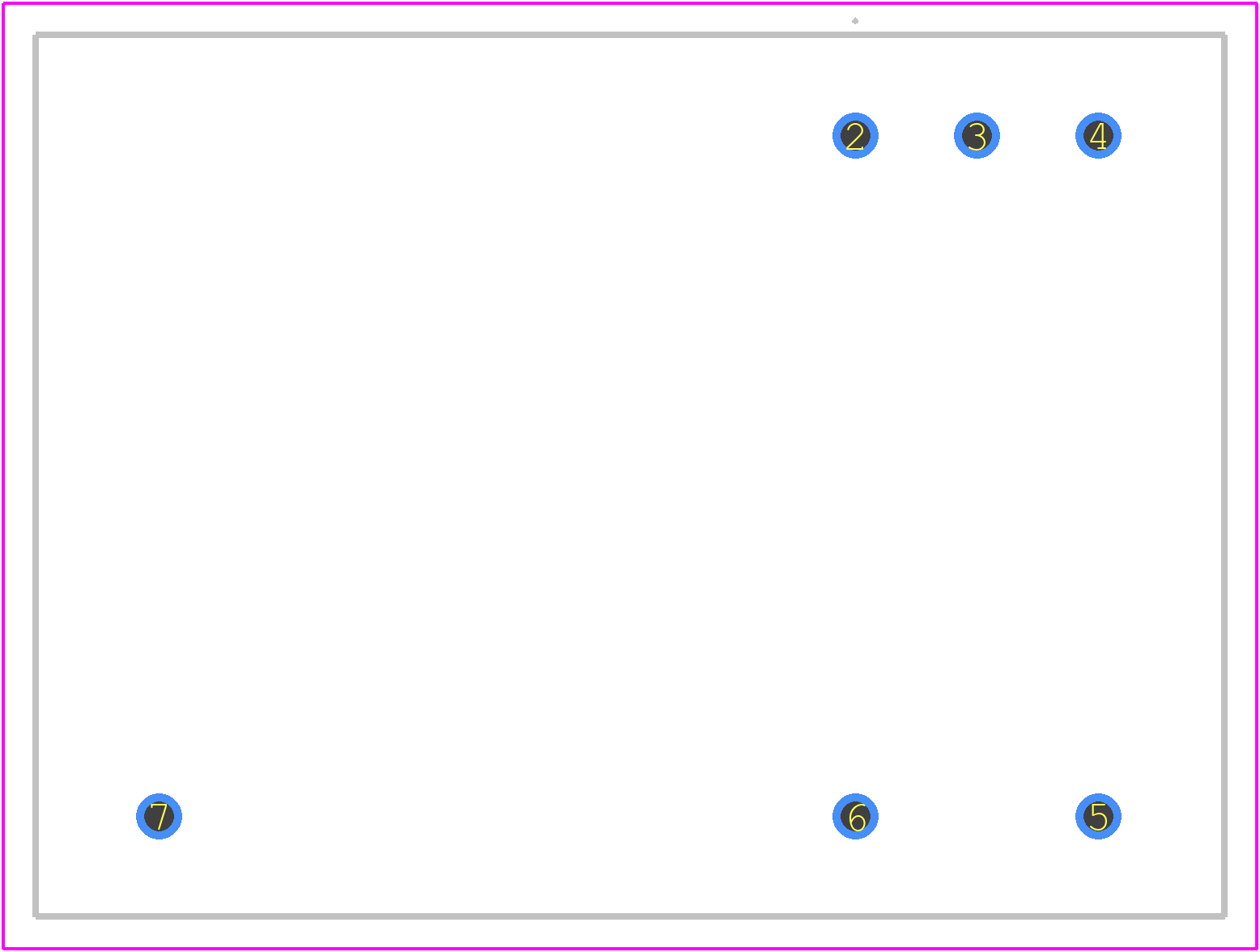

Use the download button to access the RAC04-05SC/277-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC04,
or try a keyword search, such as Power Supply Modules
