The recommended PCB layout for optimal thermal performance involves placing the converter on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of components to ensure good airflow.
To ensure reliable start-up, ensure that the input voltage is within the specified range, the input capacitance is sufficient, and the output is properly decoupled. Also, consider adding a soft-start circuit to reduce inrush current.
The maximum allowed capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
While the converter is rated for operation up to 80°C, it's essential to consider derating the output power and ensuring good airflow to prevent overheating. Consult the datasheet for derating curves and thermal management guidelines.
To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Check for signs of overheating, oscillations, or component failure. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC04-05SC/277 Overview

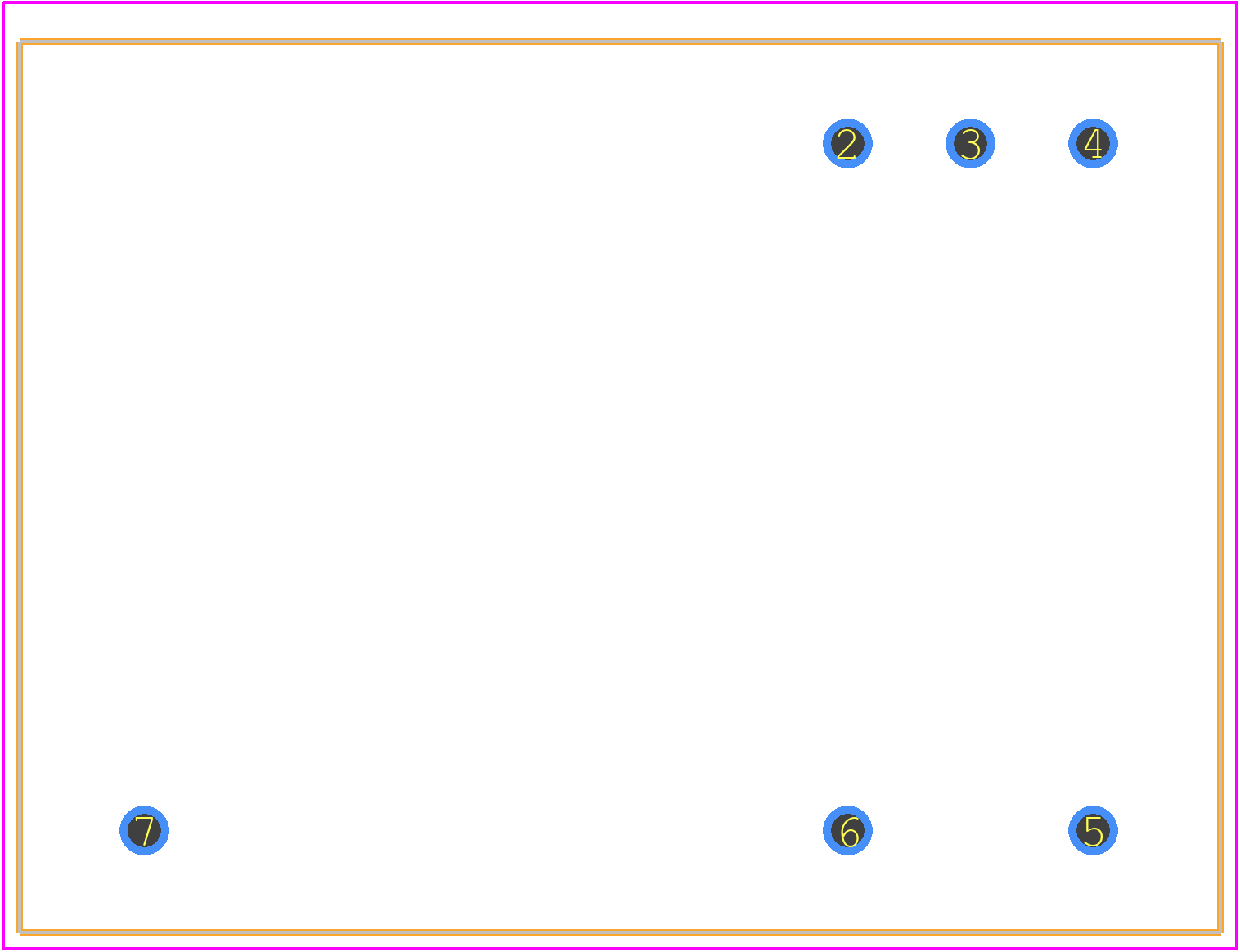

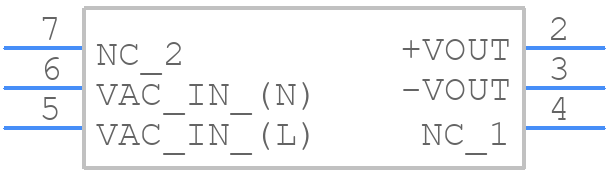

Use the download button to access the RAC04-05SC/277 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC04,
or try a keyword search, such as Power Supply Modules
