RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RAC04-05SC is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screwing of the module to the PCB to prevent damage.
To ensure EMC, RECOM recommends using a metal enclosure, keeping the module away from sensitive components, and using proper filtering and shielding techniques. Additionally, the module's input and output lines should be decoupled using capacitors and inductors to minimize electromagnetic interference.
The maximum allowed capacitance for the output filter is 47µF. Exceeding this value may cause instability or oscillation in the module's output voltage.
Yes, the RAC04-05SC can be used in a redundant or parallel configuration to achieve higher power ratings or to improve system reliability. However, it's essential to ensure proper synchronization and control of the modules to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC04-05SC Overview

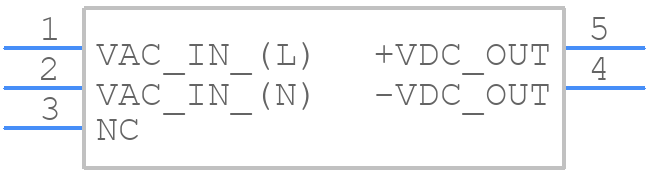

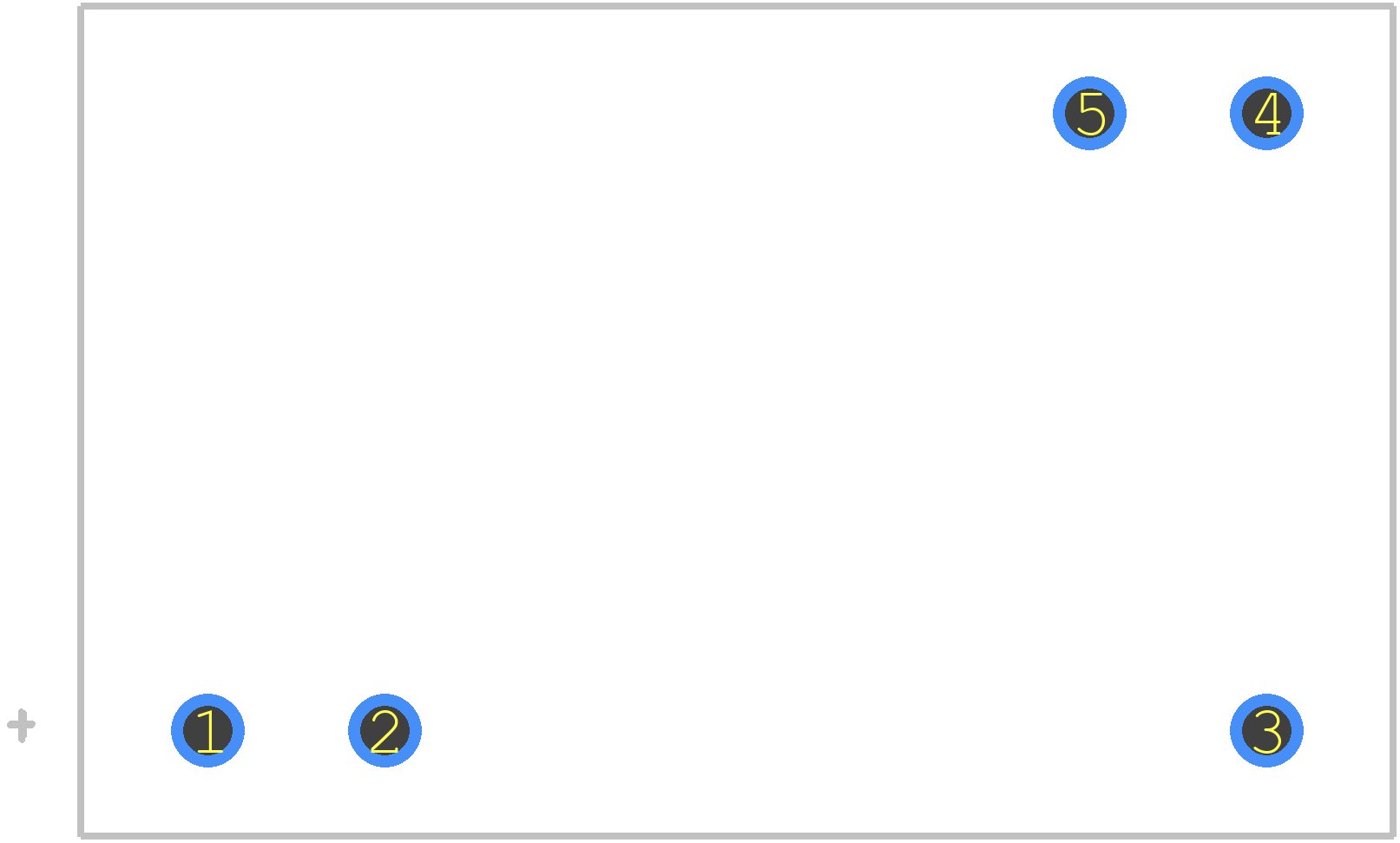

Use the download button to access the RAC04-05SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC04,
or try a keyword search, such as Power Supply Modules
