RAC04-12SC/230 - RECOM Power

Description: AC/DC Power Supply Single-OUT 12V 0.333A 4W 6-Pin Tube

Download RAC04-12SC/230 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

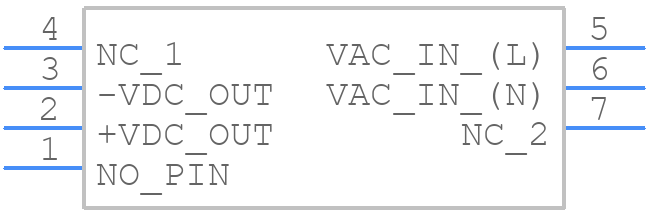

Symbol
RAC04-12SC/230 - RECOM Power - PCB symbol
click to zoom

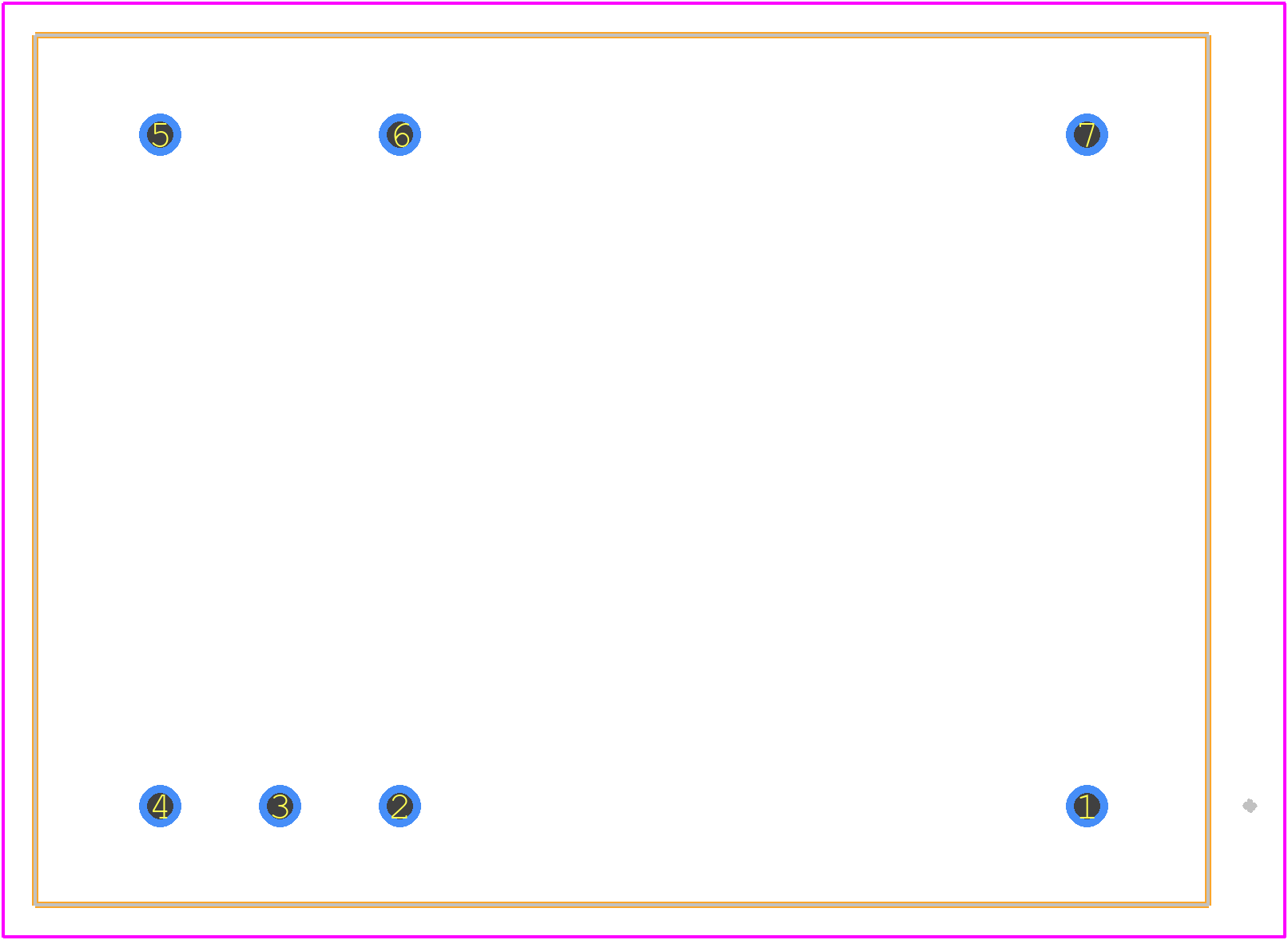

PCB Footprints
RAC04-12SC/230 - RECOM Power PCB footprint - Other - Other - RAC04-12SC/230-2
click to zoom
3D Models
RAC04-12SC/230 - RECOM Power - 3D model - Other - RAC04-12SC/230-2
click to zoom

RAC04-12SC/230 Details

  • Manufacturer Part Number:

    RAC04-12SC/230

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DMA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRE 113-373VDC INPUT

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    80 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-PDMA-P7

  • Length:

    36.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -38 °C

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    17.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3.996 W

  • Trim/Adjustable Output:

    NO

  • Width:

    27.2 mm

RAC04-12SC/230 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the converter on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of components to ensure good airflow.
  • To ensure reliable start-up, ensure that the input voltage is within the specified range, the input capacitor is properly sized, and the output capacitor is properly selected to prevent oscillations.
  • The maximum allowed capacitance on the output of the converter is 220uF. Exceeding this value may cause instability or oscillations.
  • While the converter is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation in high-temperature environments.
  • To protect the converter from input voltage transients, use a TVS diode or a transient voltage suppressor in parallel with the input capacitor to clamp voltage spikes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RAC04-12SC/230 Overview

Use the download button to access the RAC04-12SC/230 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC04, or try a keyword search, such as Power Supply Modules
