Part Image

RAC04-12SC - RECOM Power

Description: Power Supply Encapsulated 12V 4W

Download RAC04-12SC Model

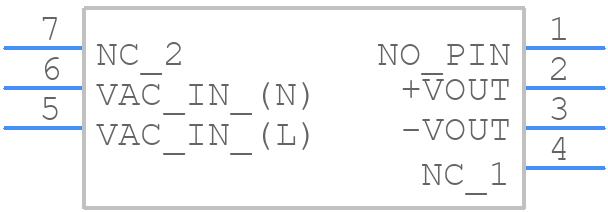

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

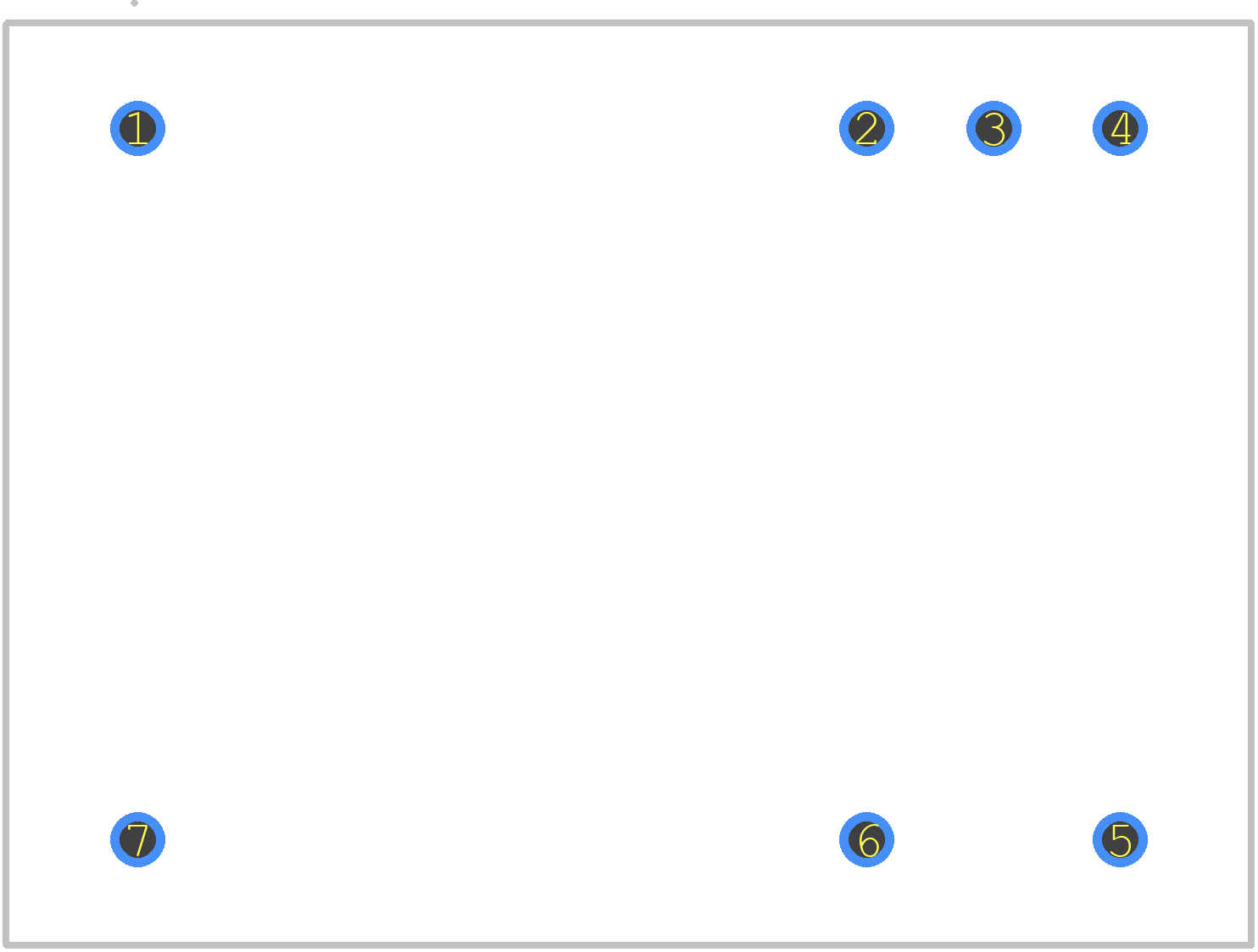

PCB Footprints
RAC04-12SC - RECOM Power PCB footprint - Other - Other - RAC04-0512DC/230
click to zoom
3D Models
RAC04-12SC - RECOM Power  - 3D model - Other - RAC04-0512DC/230
click to zoom

RAC04-12SC Details

  • Manufacturer Part Number:

    RAC04-12SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DMA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN, CSA, UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    74%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    80 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-PDMA-P5

  • JESD-609 Code:

    e3

  • Length:

    37.8 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Seated Height-Max:

    16.65 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    4 W

  • Trim/Adjustable Output:

    NO

  • Width:

    23.9 mm

RAC04-12SC Frequently Asked Questions (FAQs)

  • RECOM recommends a PCB layout with a large copper area connected to the tab of the module to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • Yes, the RAC04-12SC is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications.
  • RECOM recommends using a soldering profile with a peak temperature of 240°C and a dwell time of 30-60 seconds. Ensure the module is properly aligned with the PCB pads and use a solder with a melting point above 217°C.
  • RECOM recommends using a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 25V or higher, placed as close as possible to the input pins of the module.
  • Yes, the RAC04-12SC can be used in a redundant configuration to achieve high reliability and fault tolerance. However, ensure that the modules are properly synchronized and that the system is designed to handle the increased power consumption.
