RECOM recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
To ensure reliability and stability, RECOM recommends following the derating curves for temperature and input voltage, and using a suitable cooling system to keep the converter within its specified operating temperature range.
The RAC04-15SGB has built-in EMI filtering, but additional external filtering may be required to meet specific EMC standards. RECOM recommends following the application notes and guidelines for EMI filtering and testing to ensure compliance.
Yes, the RAC04-15SGB can be used in redundant or parallel configurations. RECOM recommends following the application notes and guidelines for parallel and redundant operation, and using suitable external components and control circuits to ensure proper operation and fault tolerance.
The RAC04-15SGB is suitable for a wide range of applications, including industrial control systems, telecommunications, and medical devices. RECOM recommends selecting the right model based on the specific application requirements, including input voltage, output voltage, power rating, and environmental conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC04-15SGB Overview

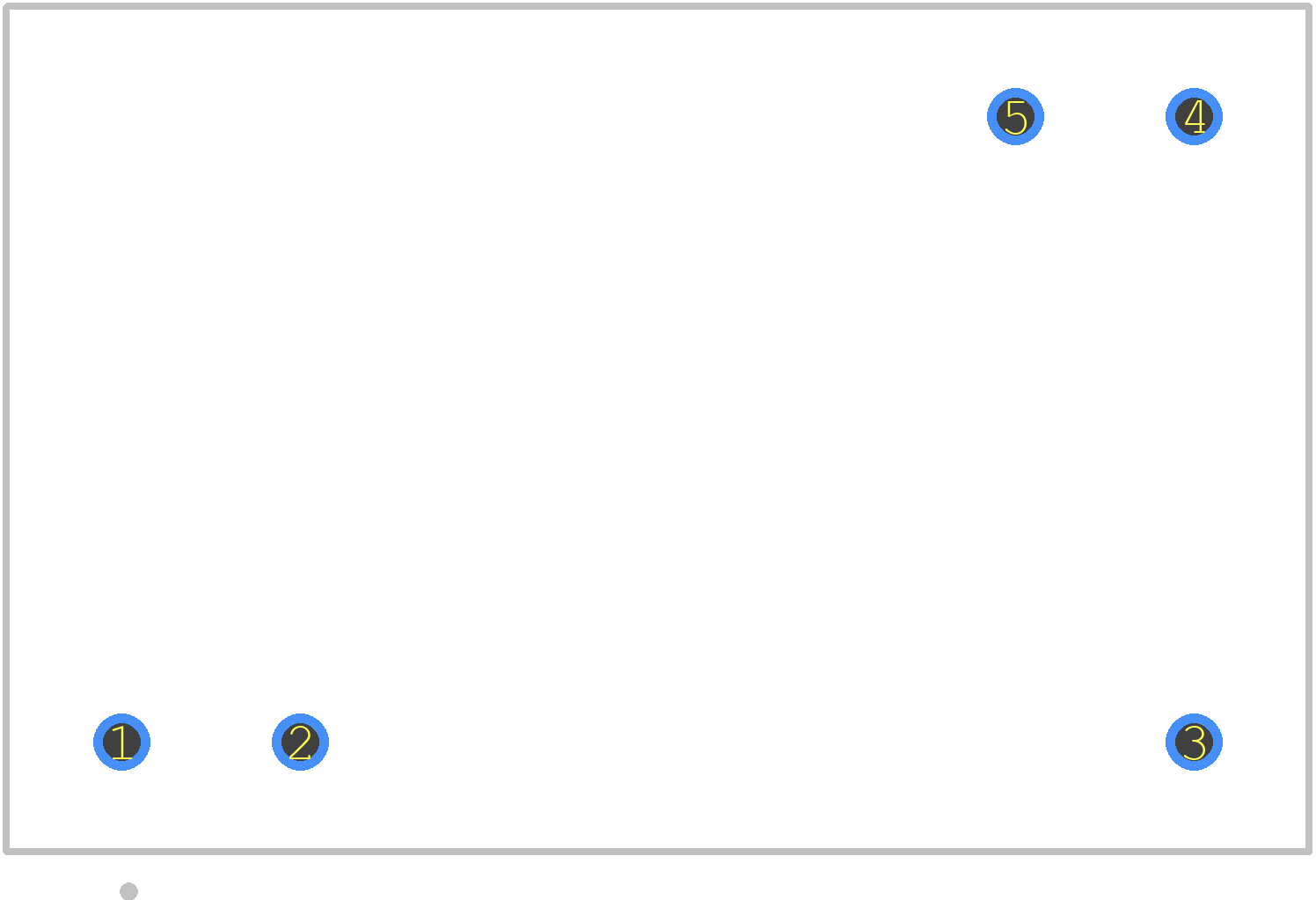

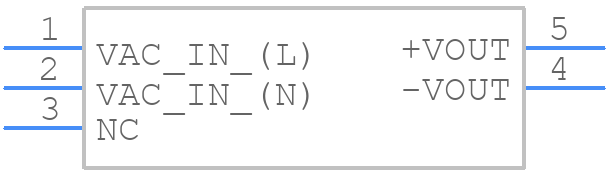

Use the download button to access the RAC04-15SGB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC04,
or try a keyword search, such as Power Supply Modules
