RAC05-3.3SK/277 - RECOM Power

RAC05-3.3SK/277 Details

• Manufacturer Part Number:

  RAC05-3.3SK/277

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DMA, MODULE,4/9LEAD,.7

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  6

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  ANSI, CAN, CB, CE, CSA, C-UL-US, EN, FCC, IEC, UL

• Efficiency (Main Output):

  77%

• Input Voltage-Max:

  305 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  277 V

• JESD-30 Code:

  R-PDMA-P4

• JESD-609 Code:

  e3

• Length:

  31.7 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  90 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.51 A

• Output Voltage-Max:

  3.333 V

• Output Voltage-Min:

  3.267 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

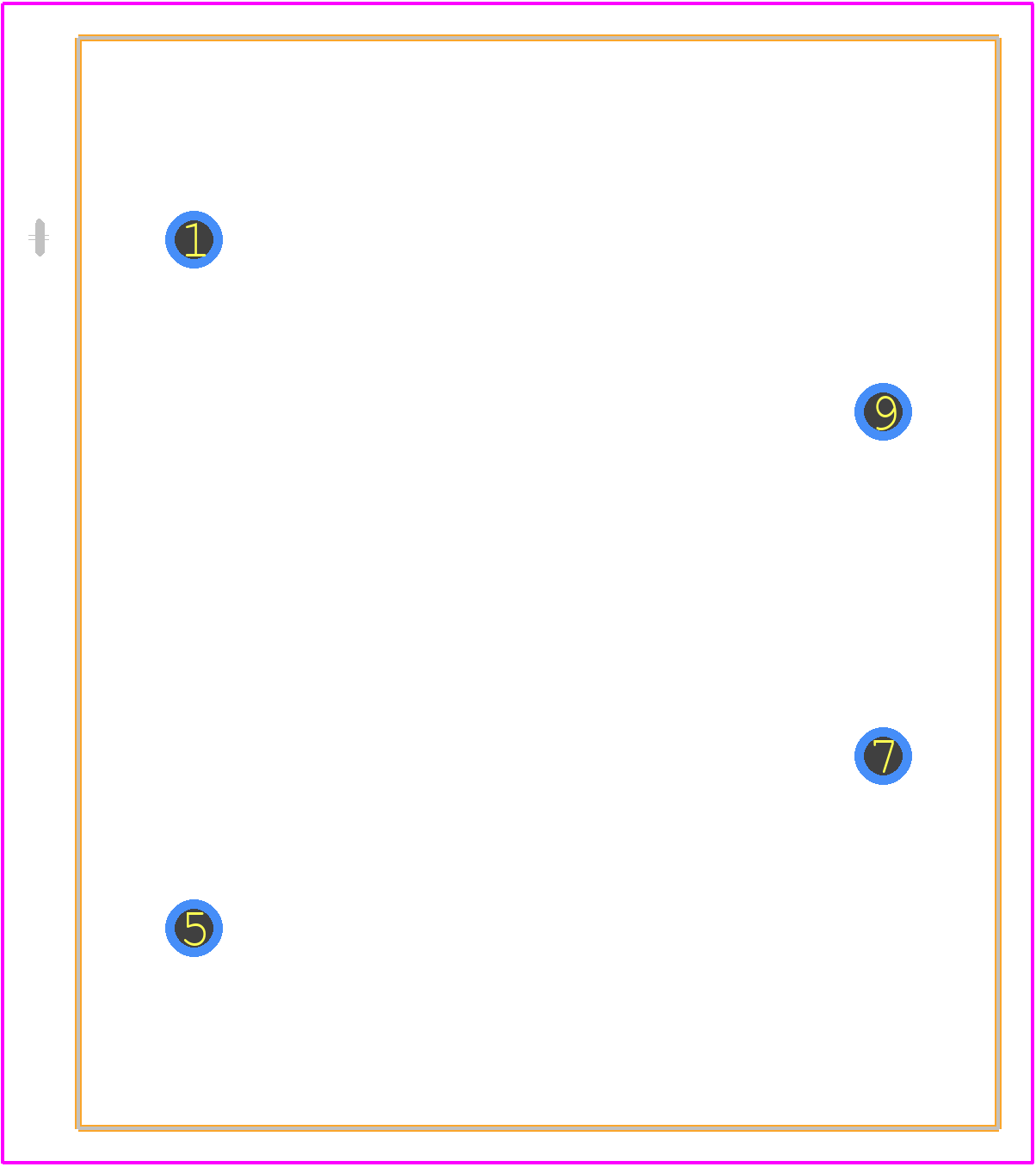

• Package Equivalence Code:

  MODULE,4/9LEAD,.7

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.021 Vrms

• Screening Level:

  EN/IEC/UL 62368-1

• Seated Height-Max:

  22.6 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  5 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.02 s

• Width:

  26.7 mm
