RAC05E-12SKT - RECOM Power

Description: 5 Watt 1.07“x1.26“ Single Output

Download RAC05E-12SKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RAC05E-12SKT - RECOM Power - PCB symbol
click to zoom
PCB Footprints

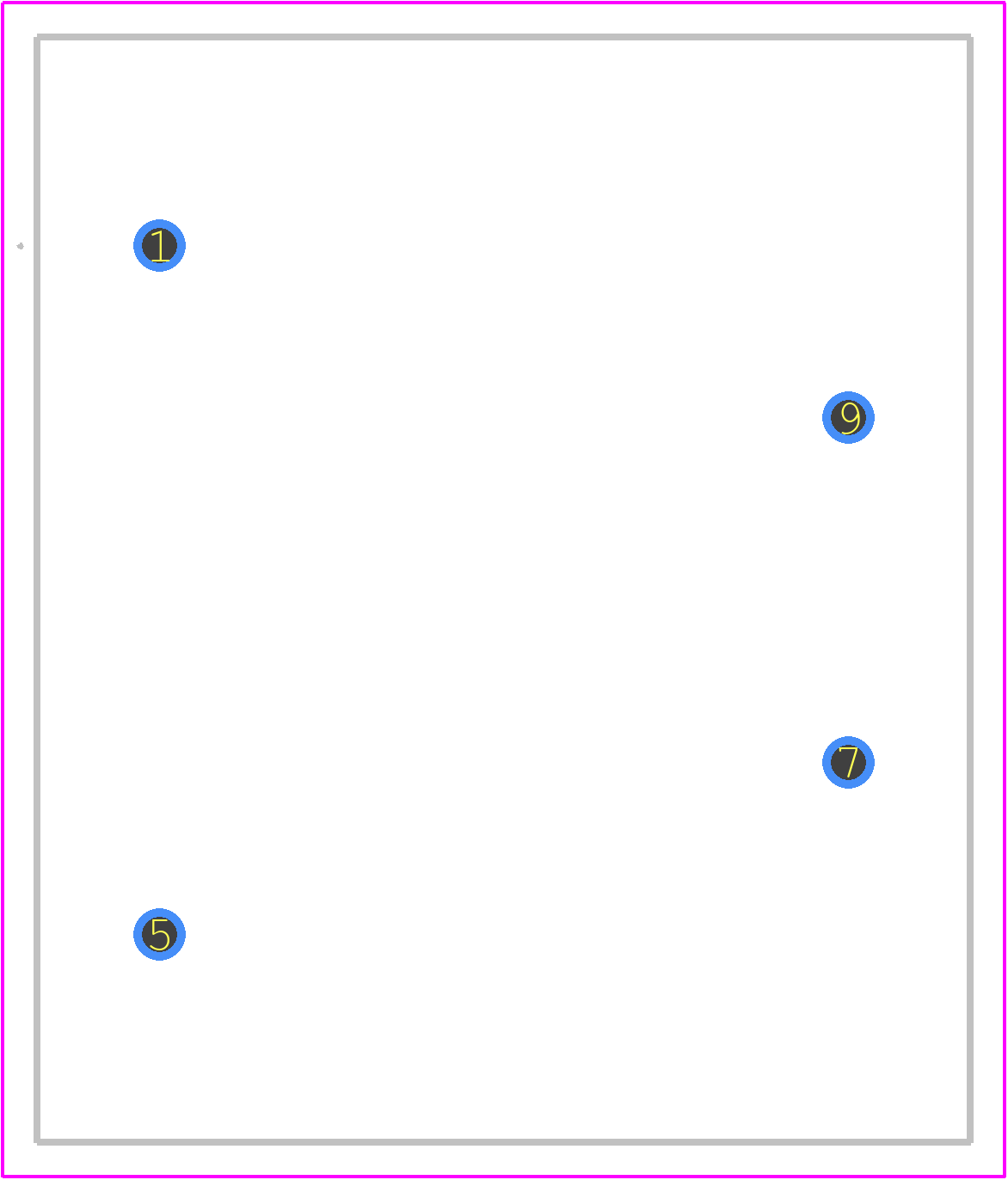

RAC05E-12SKT - RECOM Power PCB footprint - Other - Other - RAC05E-12SKT
click to zoom
3D Models
RAC05E-12SKT - RECOM Power - 3D model - Other - RAC05E-12SKT
click to zoom

RAC05E-12SKT Details

  • Manufacturer Part Number:

    RAC05E-12SKT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-4

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CE, EAC, IEC

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    78%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    90 V

  • Input Voltage-Nom:

    230 V

  • JESD-30 Code:

    R-PDMA-P4

  • Length:

    32.1 mm

  • Line Regulation-Max:

    2%

  • Load Regulation-Max:

    2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.417 A

  • Output Voltage-Max:

    12.36 V

  • Output Voltage-Min:

    11.64 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT; OVER VOLTAGE

  • Ripple Voltage (Main Out):

    0.0247 Vrms

  • Seated Height-Max:

    22 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    130 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    27.1 mm

RAC05E-12SKT Frequently Asked Questions (FAQs)

  • RECOM recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
  • The RAC05E-12SKT is certified to IEC/EN/UL 62368-1 and meets the requirements for IT equipment. However, it's essential to ensure that the entire system meets the required safety certifications, and RECOM recommends consulting with a safety expert or testing house for compliance.
  • RECOM recommends a maximum output capacitance of 220uF to ensure stable operation and prevent oscillations. Exceeding this value may lead to instability or even damage to the converter.
  • RECOM recommends using a TVS diode or a surge protector at the input to protect the converter from voltage transients and surges. The TVS diode should be selected based on the maximum expected surge voltage and energy.
  • RECOM recommends a fuse rating of 2A to 5A, depending on the application, and a slow-blow fuse type to ensure reliable overcurrent protection. The fuse should be selected based on the maximum expected input current and the converter's overcurrent protection characteristics.
