SHORT CIRCUIT; OUTPUT OVER VOLTAGE; OUTPUT OVER CURRENT
Ripple Voltage (Main Out):
0.053025 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
22 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.05 s
Width:
25.4 mm
RAC10E-05SK/277 Frequently Asked Questions (FAQs)
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RAC10E-05SK/277 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screwing procedures to ensure the module is securely fastened to the PCB or chassis.
To ensure EMC, RECOM recommends following proper PCB layout and design guidelines, such as keeping sensitive components away from the module, using shielding, and implementing proper filtering and decoupling. Additionally, the module should be installed in a metal enclosure to reduce electromagnetic radiation.
The maximum allowed input capacitance for the RAC10E-05SK/277 is 47uF. Exceeding this value may cause instability or oscillation in the module. It's recommended to use a capacitor with a low equivalent series resistance (ESR) to minimize the risk of oscillation.
Yes, the RAC10E-05SK/277 can be used in a redundant or parallel configuration to increase power availability and reliability. However, it's essential to follow proper design and implementation guidelines to ensure proper operation and to avoid potential issues such as current imbalance or oscillation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC10E-05SK/277 Overview

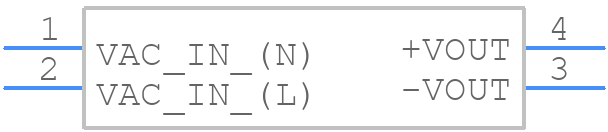

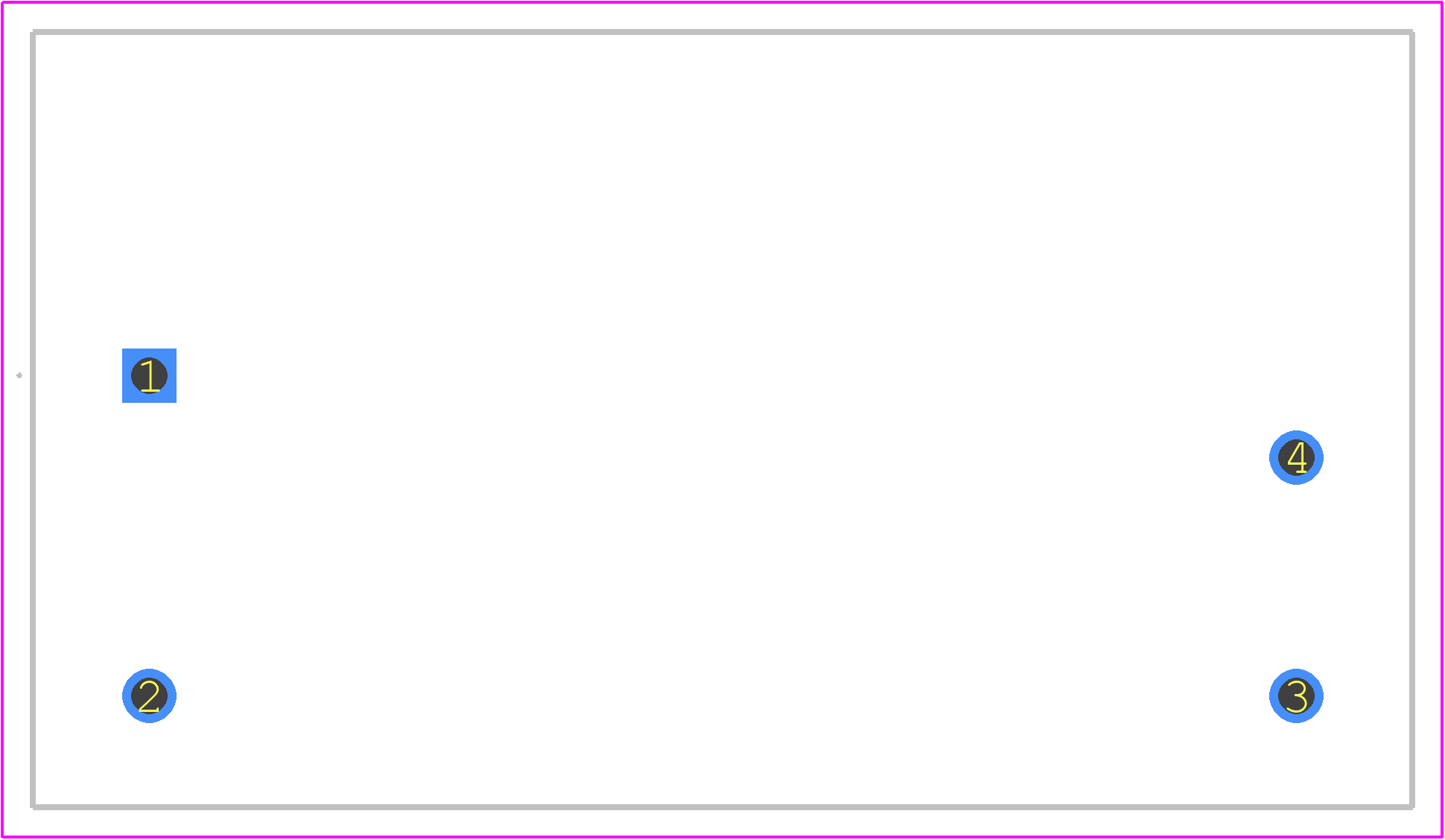

Use the download button to access the RAC10E-05SK/277 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC10,
or try a keyword search, such as Power Supply Modules
