Part Image

RAC20-05SN - RECOM Power

Description: RECOM POWER - RAC20-05SN - POWER SUPPLY, AC-DC, 5V, 3.6A

Download RAC20-05SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

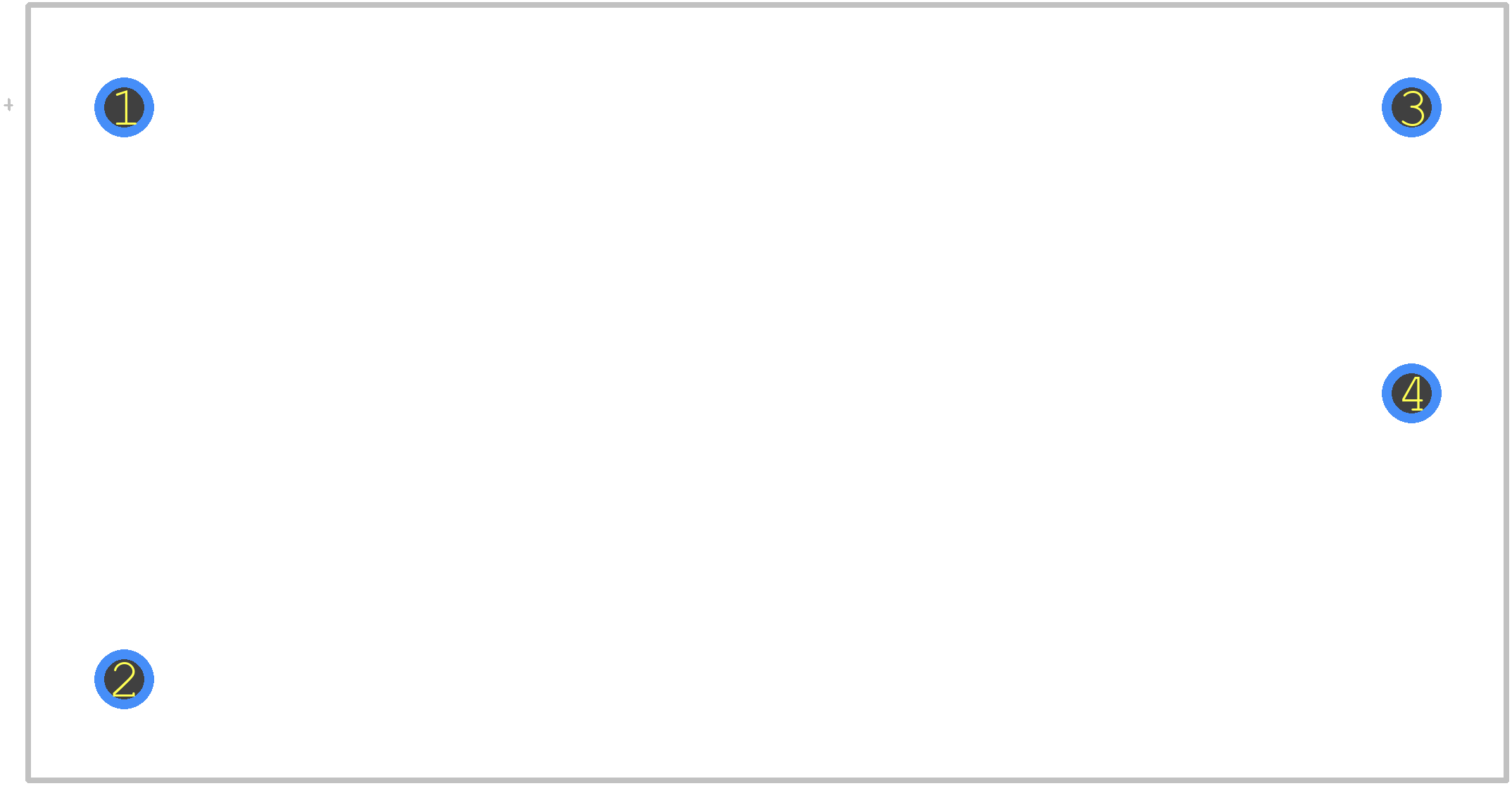

RAC20-05SN - RECOM Power PCB footprint - Other - Other - RAC20
click to zoom
3D Models
RAC20-05SN - RECOM Power  - 3D model - Other - RAC20
click to zoom

RAC20-05SN Details

  • Manufacturer Part Number:

    RAC20-05SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-10-18

  • Manufacturer:

    RECOM Power Inc

  • YTEOL:

    3

  • Additional Feature:

    120 -370VDC INPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, CSA, EN, IEC

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    78%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    90 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-PDMA-P4

  • Length:

    52.5 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.6 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVER VOLTAGE; OVER CURRENT

  • Ripple Voltage (Main Out):

    0.04242 Vrms

  • Seated Height-Max:

    24 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    18 W

  • Trim/Adjustable Output:

    NO

  • Width:

    27.5 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RAC20-05SN Overview

Use the download button to access the RAC20-05SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAC20, or try a keyword search, such as Power Supply Modules
