RAC20-15SN - RECOM Power

RAC20-15SN Details

• Manufacturer Part Number:

  RAC20-15SN

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  DMA,

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Date Of Intro:

  2016-10-18

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  3

• Additional Feature:

  120 -370VDC INPUT ALSO AVAILABLE

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CSA, EN, IEC

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  83%

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  90 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-PDMA-P4

• Length:

  52.5 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

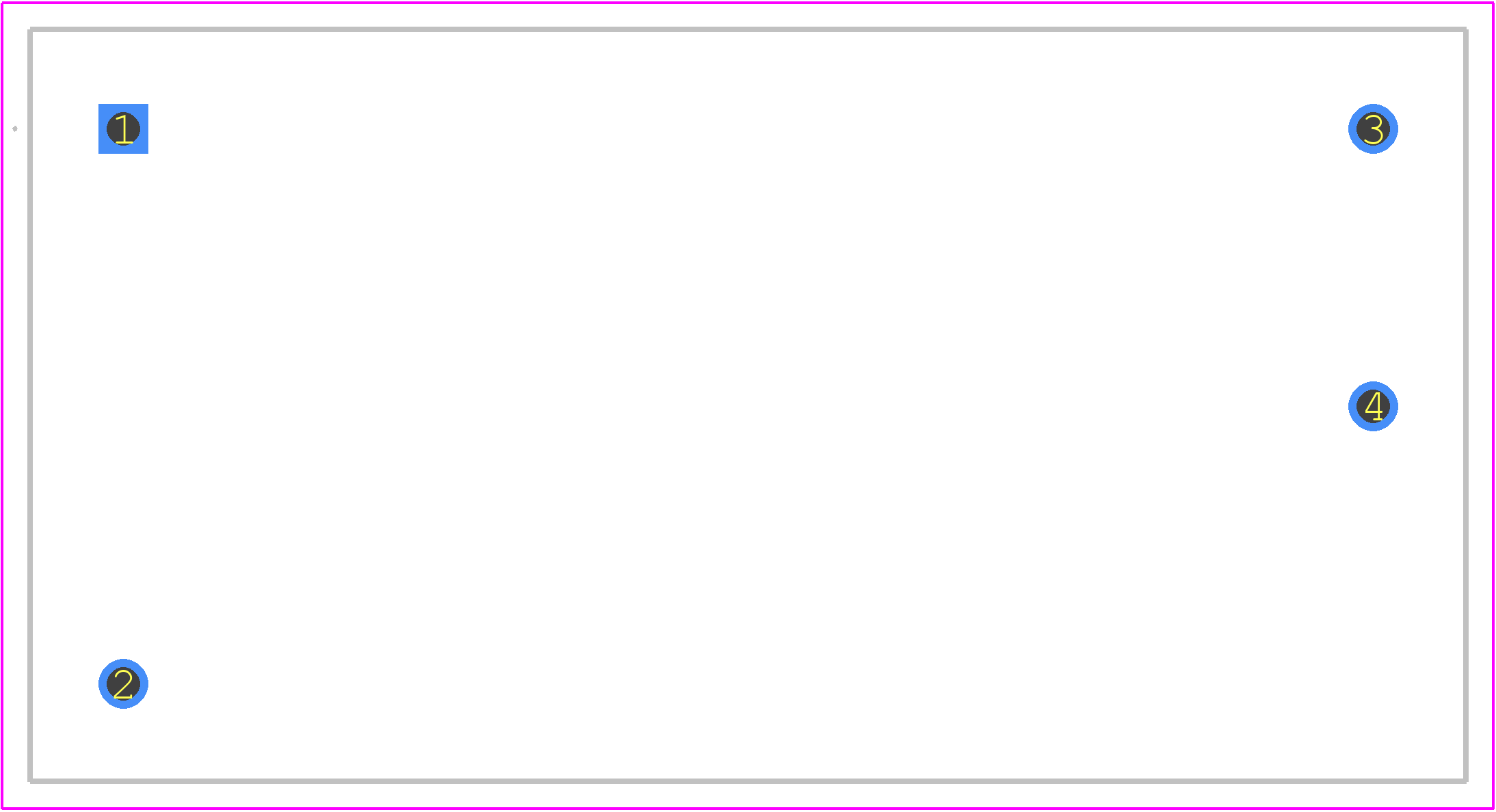

• Number of Terminals:

  4

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.333 A

• Output Voltage-Max:

  15.3 V

• Output Voltage-Min:

  14.7 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER VOLTAGE; OVER CURRENT

• Ripple Voltage (Main Out):

  0.04242 Vrms

• Seated Height-Max:

  24 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  20 W

• Trim/Adjustable Output:

  NO

• Width:

  27.5 mm
