RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RAC20-24SB is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and screw torque to prevent damage or disconnection.
To ensure reliability in high-temperature environments, it's crucial to maintain a maximum ambient temperature of 40°C (104°F) and ensure good airflow around the module. Additionally, derating the output power according to the temperature derating curve in the datasheet can help prevent overheating.
RECOM recommends using a low-ESR input capacitor with a value of 10-22 μF, X7R or X5R dielectric, and a voltage rating of at least 50V. This helps to filter input noise and ensure stable operation.
Yes, the RAC20-24SB can be used in a redundant or parallel configuration to achieve higher power or redundancy. However, it's essential to ensure proper synchronization and control of the modules to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC20-24SB Overview

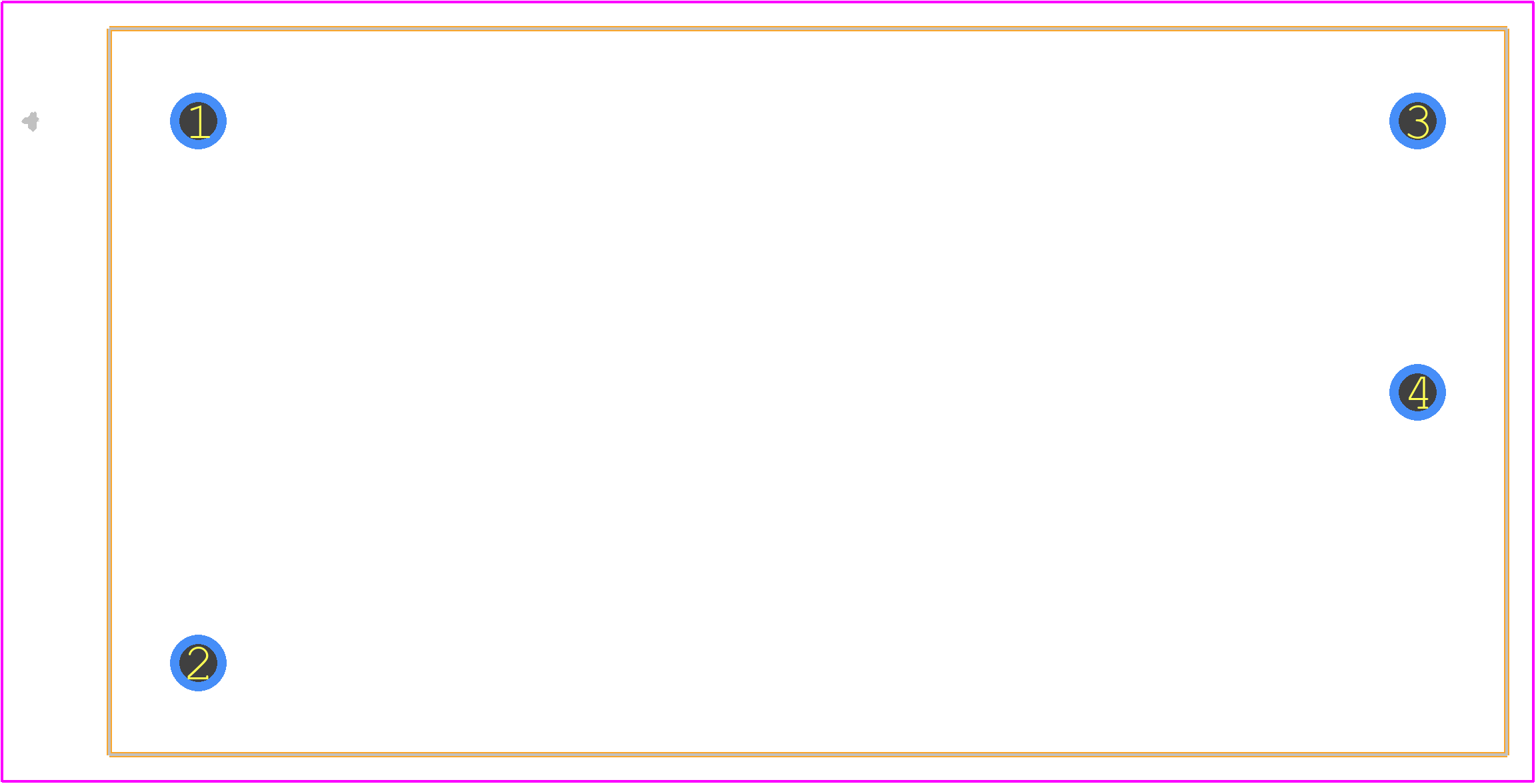

Use the download button to access the RAC20-24SB schematic symbol, PCB footprint, and 3D model.
