RAC20NE-12DK/277/HT - RECOM Power

Description: Enclosed AC DC Converters 2 Output 12V -12V 1.58A, 83mA 85 ~ 305 VAC, 120 ~ 430 VDC Input

Download RAC20NE-12DK/277/HT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this RAC20NE-12DK/277/HT model

Email notifications will be applied after download.

Send part feedback

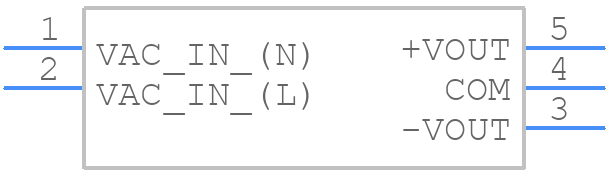

Symbol

RAC20NE-12DK/277/HT - RECOM Power - PCB symbol

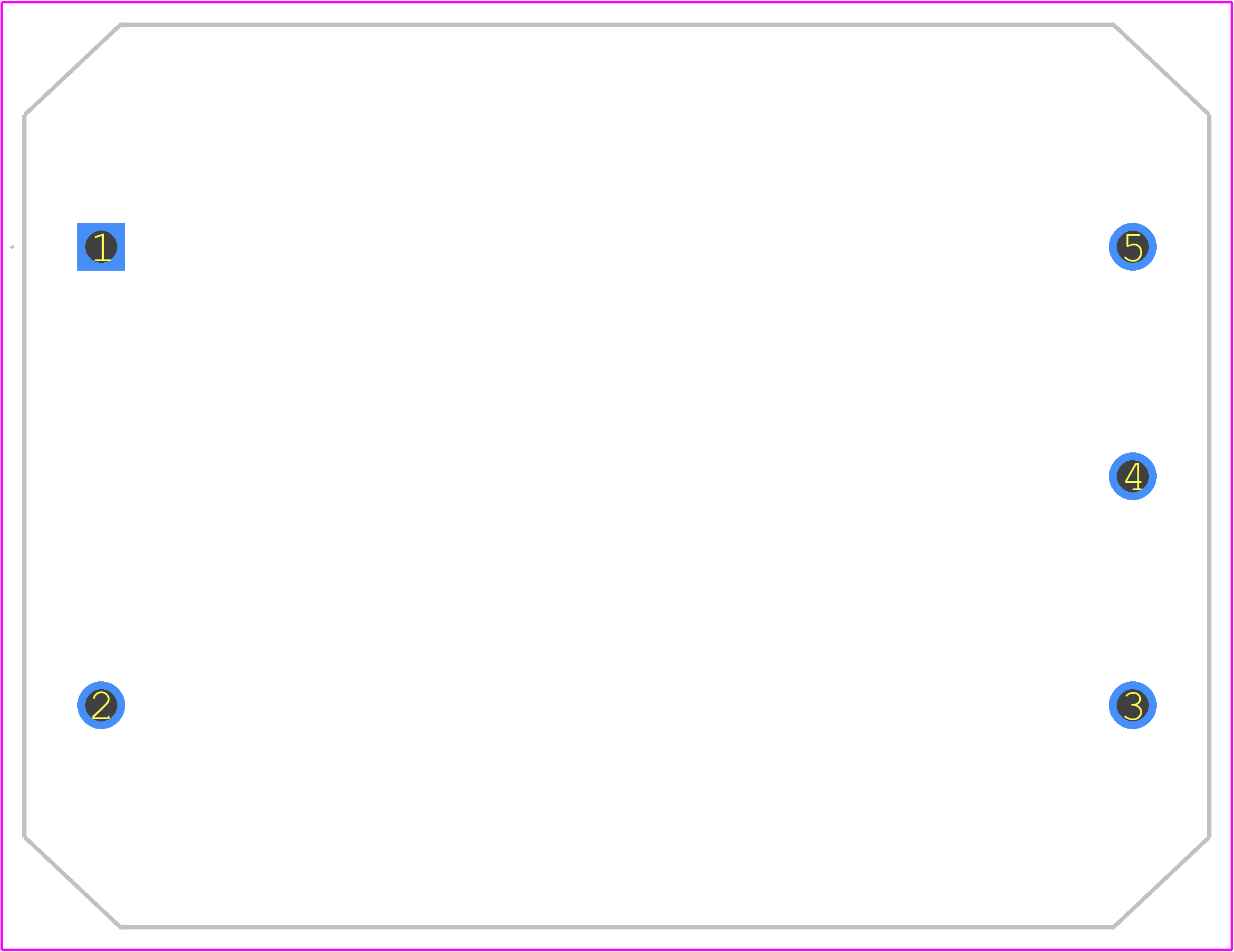

PCB Footprints

RAC20NE-12DK/277/HT - RECOM Power PCB footprint - Other - Other - 52.5 mm x 40 mm x 25.5 mm

3D Models

RAC20NE-12DK/277/HT - RECOM Power - 3D model - Other - 52.5 mm x 40 mm x 25.5 mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for RAC20NE-12DK/277/HT
Part Number RAC20NE-12DK/277/HT
Manufacturer RECOM Power
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - 52.5 mm x 40 mm x 25.5 mm
Released Date Jul 23, 2025
Last Modified Date Jul 23, 2025 11:12 AM UTC
Pinout / Pin List Click Here (Member Only)

RAC20NE-12DK/277/HT Details

Manufacturer Part Number:
RAC20NE-12DK/277/HT
Manufacturer:
RECOM Power GmbH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RAC20NE-12DK/277/HT Overview

Use the download button to access the RAC20NE-12DK/277/HT schematic symbol, PCB footprint, and 3D model.
