RECOM Power Inc recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RACM16E-12SK/277 is designed to withstand high vibrations. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is rigid enough to prevent flexing or bending. Additionally, the module's connectors should be securely fastened to prevent damage.
RECOM Power Inc recommends using a fuse with a rating of 2-3A, slow-blow type, to protect the module from input overcurrent conditions. The exact fuse rating may vary depending on the specific application and input voltage.
The RACM16E-12SK/277 has a conformal coating to protect it from humidity, but it's not designed for immersion in water or exposure to high-pressure water jets. If the module will be used in a humid or wet environment, additional protection measures such as conformal coating or potting may be necessary.
According to RECOM Power Inc, the MTBF of the RACM16E-12SK/277 is approximately 2.5 million hours, calculated according to MIL-HDBK-217F. However, this value may vary depending on the specific application, operating conditions, and environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RACM16E-12SK/277 Overview

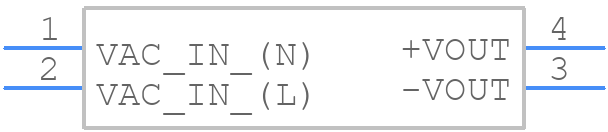

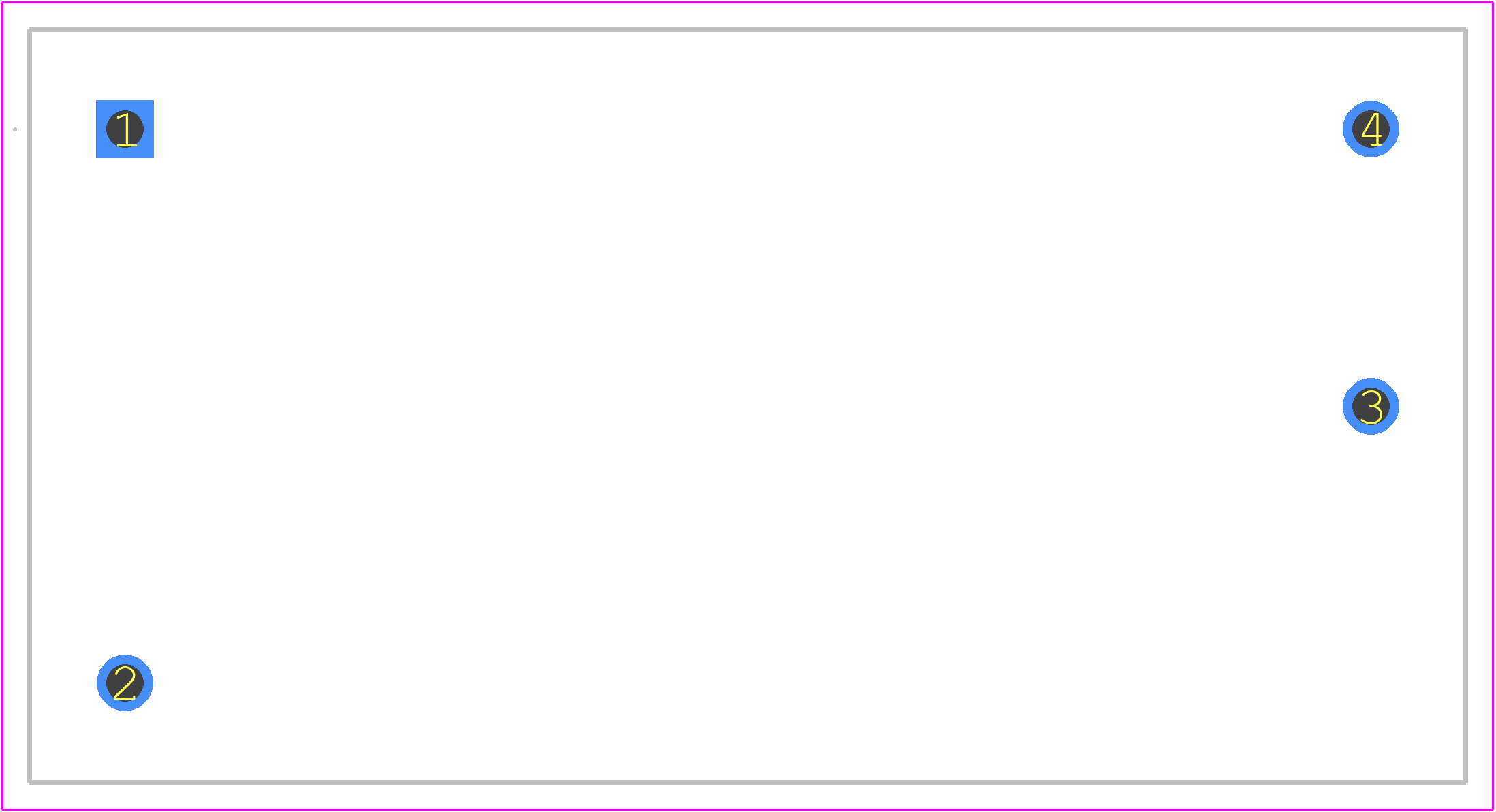

Use the download button to access the RACM16E-12SK/277 schematic symbol, PCB footprint, and 3D model.
