RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RACM30-24SER is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screwing procedures to ensure the module is securely fastened to the PCB or chassis.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves for the module's output power and input voltage. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the thermal resistance between the module and the PCB or chassis.
RECOM recommends using a fuse with a rating of 2-3 times the maximum input current of the module, which is 1.5A for the RACM30-24SER. This ensures that the fuse can handle inrush currents and provides adequate protection against overcurrent conditions.
Yes, the RACM30-24SER can be used in redundant or parallel configurations to achieve higher output power or redundancy. However, it's essential to follow proper design guidelines and ensure that the modules are properly synchronized and isolated to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RACM30-24SER Overview

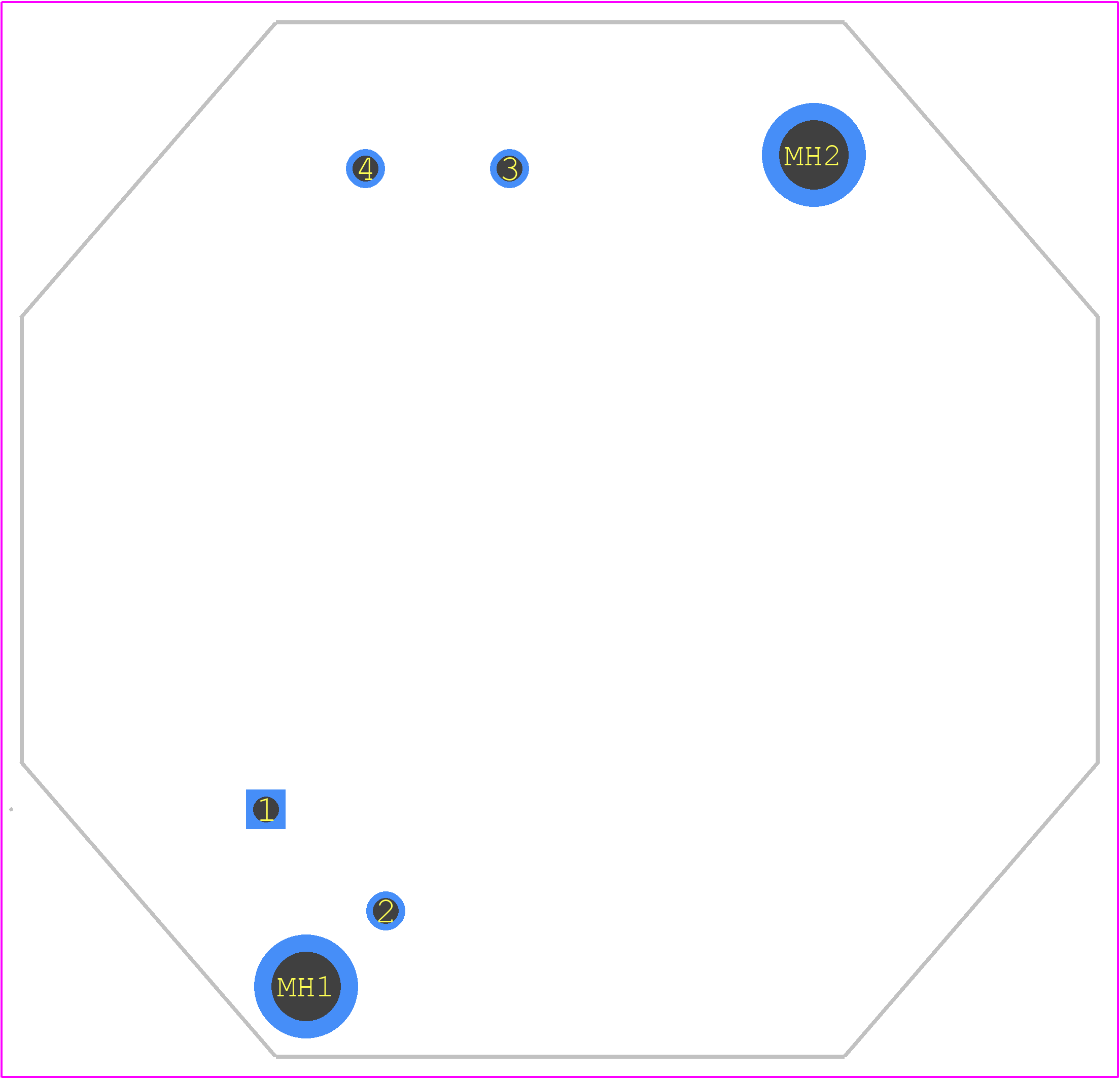

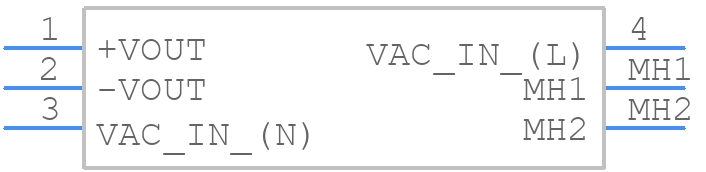

Use the download button to access the RACM30-24SER schematic symbol, PCB footprint, and 3D model.
