OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT PROTECTION
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
26 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.15 s
Width:
40 mm
RACM30-24SK/277 Frequently Asked Questions (FAQs)
RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RACM30-24SK/277 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screwing procedures to ensure the module is securely fastened to the PCB or chassis.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves for the module's output power and input voltage. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to improve heat dissipation.
RECOM recommends using a fuse with a rating of 2A to 5A, depending on the specific application and input voltage. The fuse should be able to handle the module's peak inrush current and provide protection against overcurrent conditions.
Yes, the RACM30-24SK/277 can be used in redundant or parallel configurations to achieve higher power levels or improve system reliability. However, it's essential to follow proper design and layout guidelines to ensure proper operation and to prevent electrical noise and interference between modules.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RACM30-24SK/277 Overview

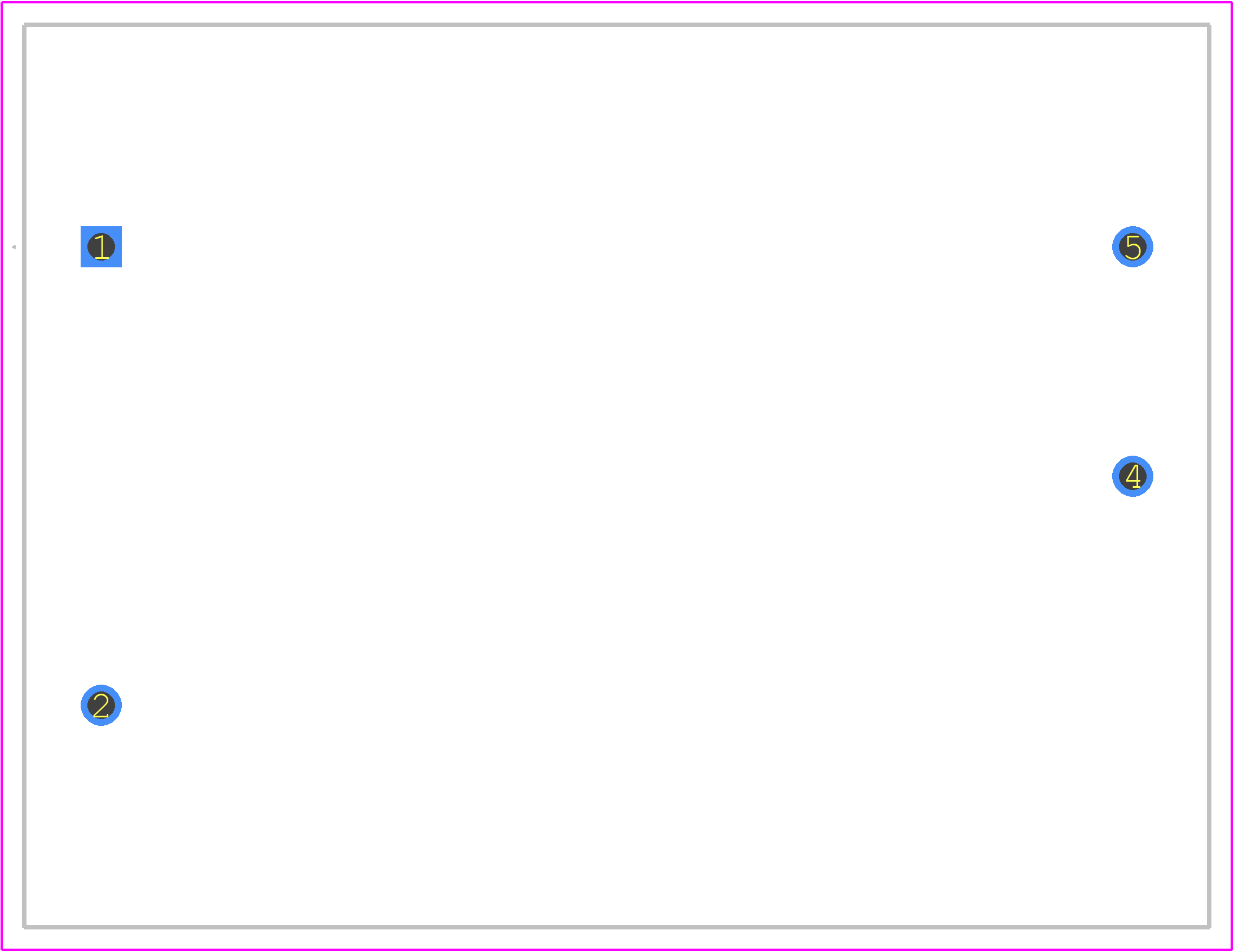

Use the download button to access the RACM30-24SK/277 schematic symbol, PCB footprint, and 3D model.
