RECOM recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
To ensure reliability and longevity, operate the module within the recommended temperature range, avoid thermal shocks, and follow proper storage and handling procedures. Also, consider using a conformal coating to protect the module from moisture and contaminants.
RECOM recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection should be based on the specific application's requirements and should consider factors such as voltage rating, ripple current, and temperature range.
Yes, the RACM40-05SK-T can be used in redundant or parallel configurations, but it's essential to follow RECOM's guidelines for synchronization and current sharing to ensure reliable operation and avoid potential issues.
The RACM40-05SK-T is designed to withstand input voltage transients and brownouts within the specified range. However, it's recommended to add external protection circuits, such as TVS diodes or voltage supervisors, to ensure the module's reliability and prevent damage during extreme voltage events.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RACM40-05SK-T Overview

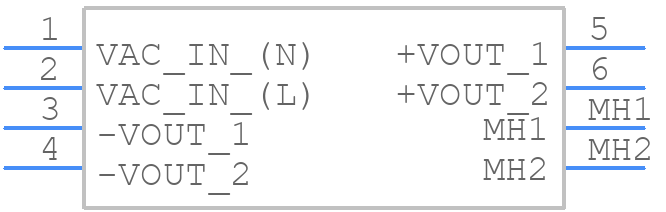

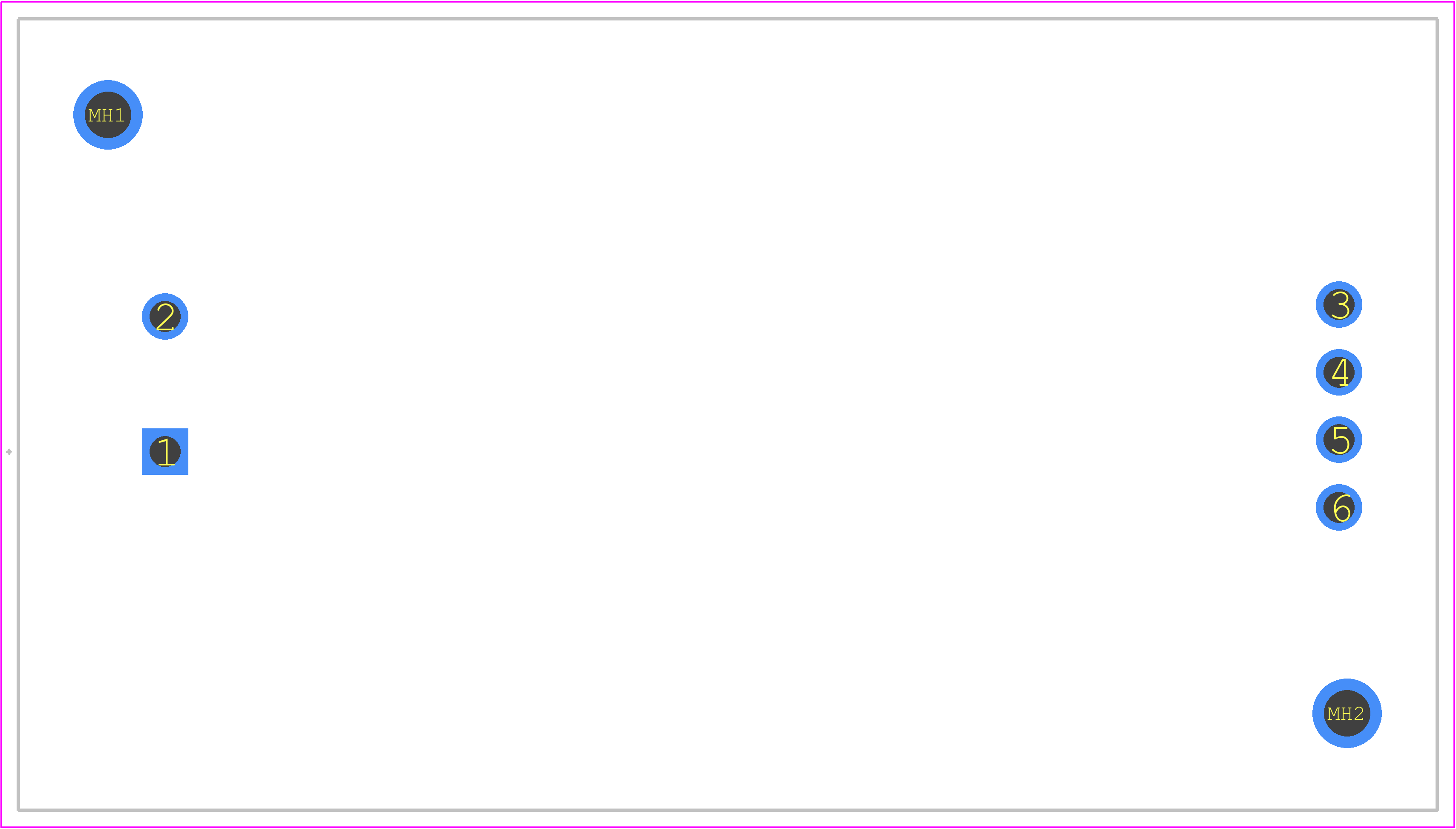

Use the download button to access the RACM40-05SK-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RACM4,
or try a keyword search, such as Power Supply Modules
