RAK3172-SiP footprint, schematic symbol and 3D model by RAK

RAK3172-SiP - RAK

Description: RAK3172-SiP is a low-power long-range transceiver based on STM32WLE5 SoC in a System-in-Package form factor. It provides an easy-to-use, small-size, low-power solution for long-range wireless data applications. This module complies with Class A, B, & C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-toPoint (P2P) communication mode which helps you in implementing your own customiz

Download RAK3172-SiP Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

PCB Footprints

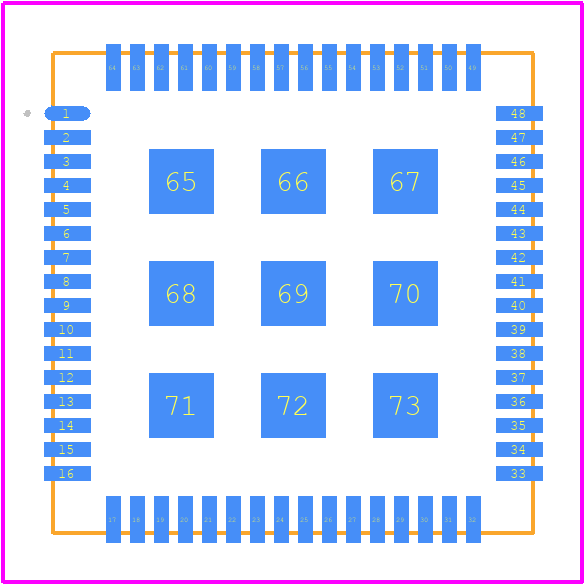

RAK3172-SiP - RAK PCB footprint - Other - Other - RAK3172-SiP-3

click to zoom

3D Models

RAK3172-SiP - RAK - 3D model - Other - RAK3172-SiP-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RAK3172-SiP
Part Number RAK3172-SiP
Manufacturer RAK
Pin Count 73
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RAK3172-SiP-3
Released Date Jun 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RAK3172-SiP Details

Manufacturer Part Number:
RAK3172-SiP
Manufacturer:
Shenzhen RAKwireless Technology Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

RAK3172-SiP Overview

Use the download button to access the RAK3172-SiP schematic symbol, PCB footprint, and 3D model.
