- Part Number RAPC10S
- Manufacturer Switchcraft
- Pin Count 3
- Part Category Connector
- Package Category Other

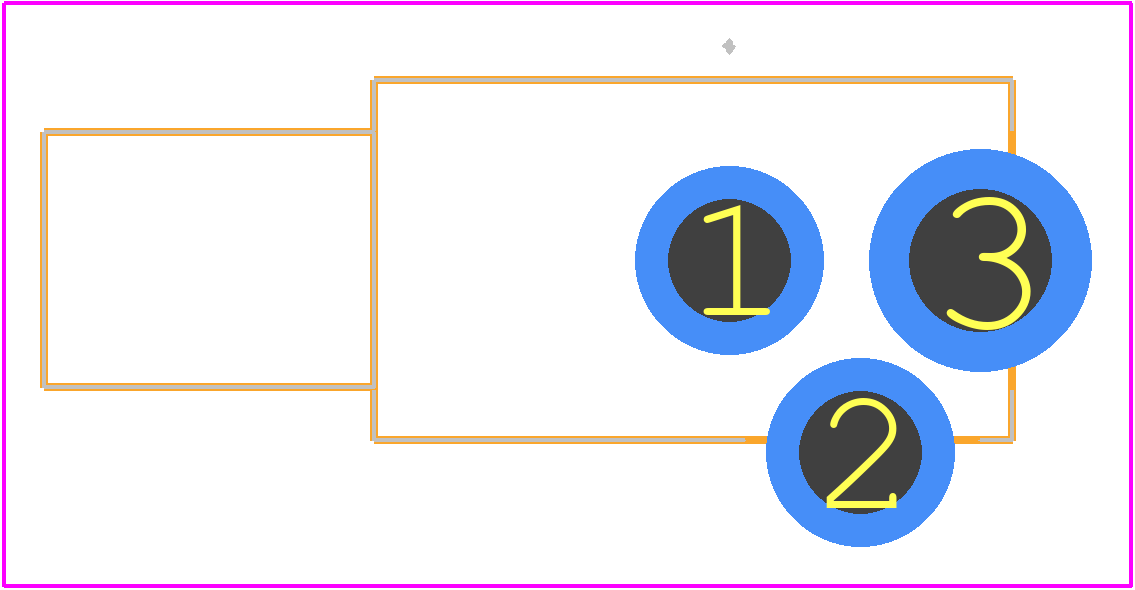

- Footprint Name Other - RAPC10S-4
- Released Date Jul 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RAPC10S Details
-
Manufacturer Part Number:
RAPC10S
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Switchcraft Conxall
-
YTEOL:
6
-
Body Breadth:
0.43 inch
-
Body Depth:
0.95 inch
-
Body Length:
0.37 inch
RAPC10S Frequently Asked Questions (FAQs)
-
The recommended torque for the RAPC10S connectors is 10-12 in-lbs (1.1-1.4 Nm) for the screw machine contacts and 5-7 in-lbs (0.6-0.8 Nm) for the jack screws.
-
Yes, the RAPC10S is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-C-5015, which includes 10-2000 Hz frequency range and 20 G acceleration.
-
The RAPC10S operates in a temperature range of -55°C to 125°C (-67°F to 257°F), making it suitable for use in a wide range of environments.
-
The RAPC10S is designed to be compatible with other MIL-C-5015 connectors, but it's recommended to verify compatibility with specific connectors before use.
-
The RAPC10S has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
