RAPC712 - Switchcraft

Description: Right Angle PC Mount DC Power Jack, pin size 0.100"(2.5mm)

Download RAPC712 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RAPC712 - Switchcraft - PCB symbol
click to zoom
PCB Footprints

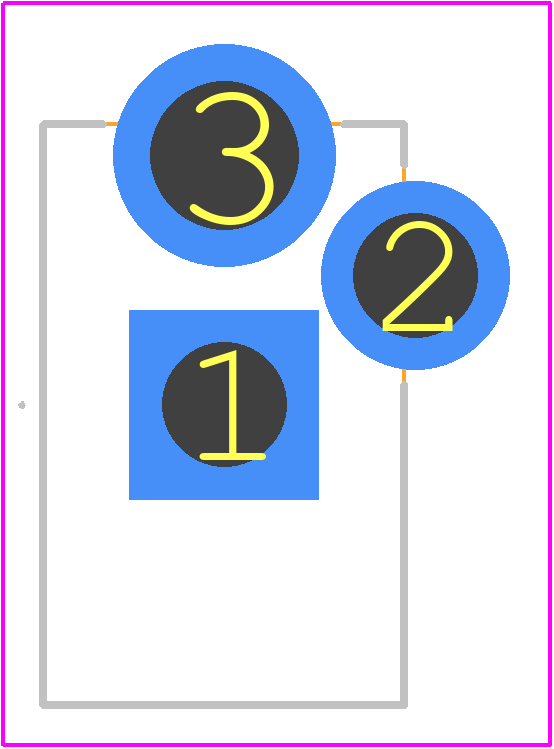

RAPC712 - Switchcraft PCB footprint - Other - Other - RAPC712-1
click to zoom
3D Models
RAPC712 - Switchcraft - 3D model - Other - RAPC712-1
click to zoom

RAPC712 Details

  • Manufacturer Part Number:

    RAPC712

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    0

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Nickel (Ni)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Termination Type:

    SOLDER

RAPC712 Frequently Asked Questions (FAQs)

  • The recommended torque for the RAPC712 connectors is 10-12 in-lbs (1.1-1.4 Nm) for the screw-locked versions and 5-7 in-lbs (0.6-0.8 Nm) for the bayonet-coupled versions.
  • Yes, the RAPC712 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-5015, which includes sinusoidal vibration testing at 10-2000 Hz, 10 G peak acceleration.
  • The RAPC712 has an operating temperature range of -55°C to 125°C (-67°F to 257°F), making it suitable for use in a wide range of environments.
  • Yes, the RAPC712 is designed to be compatible with other connectors in the MIL-DTL-5015 series, including the MIL-C-5015 and MIL-DTL-5015 specifications.
  • The RAPC712 has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RAPC712 Overview

Use the download button to access the RAPC712 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAPC7, or try a keyword search, such as DC Power Plugs or Jacks
