Part Image

RAPC712BK - Switchcraft

Description: 2.5mm locking DC PCB mount socket 2.5mm Right Angle PCB Mount DC Power Socket 5A, Silver Plate

Download RAPC712BK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

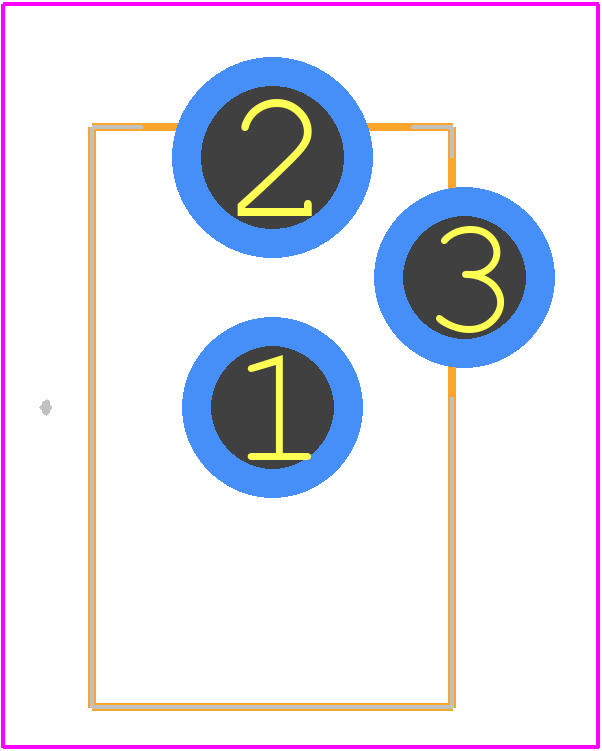

RAPC712BK - Switchcraft PCB footprint - Other - Other - RAPC712BK-1
click to zoom
3D Models
RAPC712BK - Switchcraft  - 3D model - Other - RAPC712BK-1
click to zoom

RAPC712BK Details

  • Manufacturer Part Number:

    RAPC712BK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    CIRCULAR DC POWER CONNECTOR

  • Contact Finish Mating:

    NICKEL

  • Contact Finish Termination:

    NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RAPC712BK Overview

Use the download button to access the RAPC712BK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAPC7, or try a keyword search, such as DC Power Plugs or Jacks

Parts related to RAPC712BK

Showing 0 results

RAPC712BK Alternates

Showing results

Image Part Number Model
Part Image RAPC712PTR Switchcraft Conxall

Circular DC Power Connector, 5A, 2.54mm Dia,

Part Image RAPC712P Switchcraft Conxall

Circular DC Power Connector, 5A, 2.54mm Dia,
