RAPC722X - Switchcraft

Description: DC Powered Thermoplastic Jack Connector Right Angle DC Power Plug Rated At 5A, PCB Mount, length 14.5mm, Nickel Plate

Download RAPC722X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RAPC722X - Switchcraft - PCB symbol
click to zoom
PCB Footprints

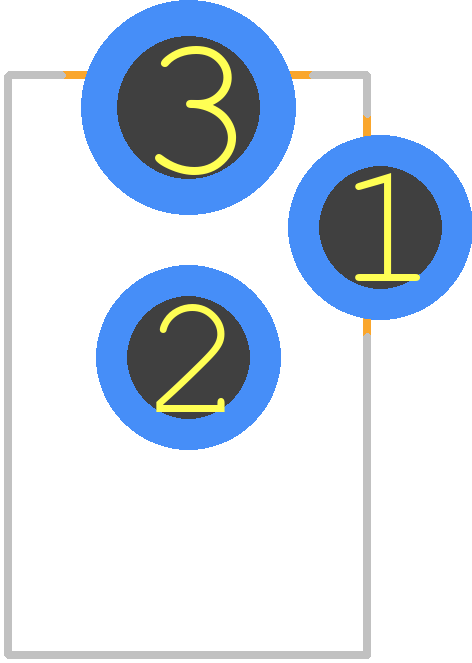

RAPC722X - Switchcraft PCB footprint - Other - Other - RAPC722X
click to zoom
3D Models
RAPC722X - Switchcraft - 3D model - Other - RAPC722X
click to zoom

RAPC722X Details

  • Manufacturer Part Number:

    RAPC722X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    6

  • Body Breadth:

    0.433 inch

  • Body Depth:

    0.571 inch

  • Body Diameter:

    0.248 inch

  • Body Length:

    0.354 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Termination:

    Silver (Ag)

  • JESD-609 Code:

    e4

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    1.93 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

RAPC722X Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the RAPC722X connector.
  • Yes, the RAPC722X connector is designed to withstand high-vibration environments and is suitable for use in applications with intense vibration.
  • Yes, the RAPC722X connector is compatible with other connectors in the same series, including the RAPC722, RAPC723, and RAPC724.
  • The operating temperature range for the RAPC722X connector is -55°C to 125°C (-67°F to 257°F).
  • Yes, the RAPC722X connector is designed to operate in harsh environments and can withstand exposure to high humidity and certain chemicals, but it's recommended to consult the datasheet and manufacturer's guidelines for specific environmental conditions.
