The operating temperature range of the RAPC752SX is -55°C to 125°C.
Yes, the RAPC752SX is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
The RAPC752SX has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
Yes, the RAPC752SX is part of the RAPC series and is compatible with other connectors in the same series, allowing for flexibility in design and assembly.
The typical insertion force required for the RAPC752SX is 10-15 lbs (44-66 N) per contact, ensuring a secure connection.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAPC752SX Overview

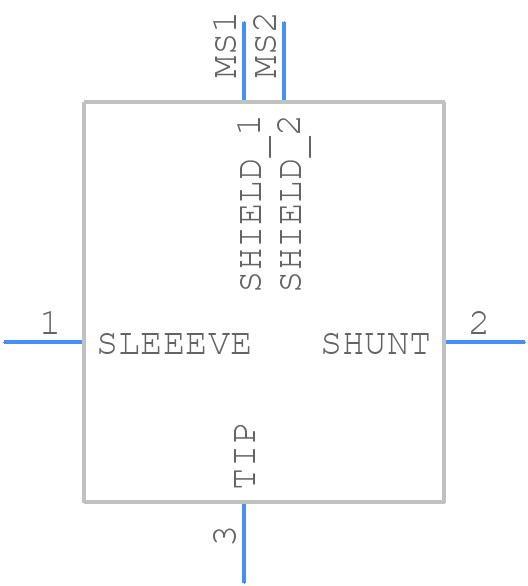

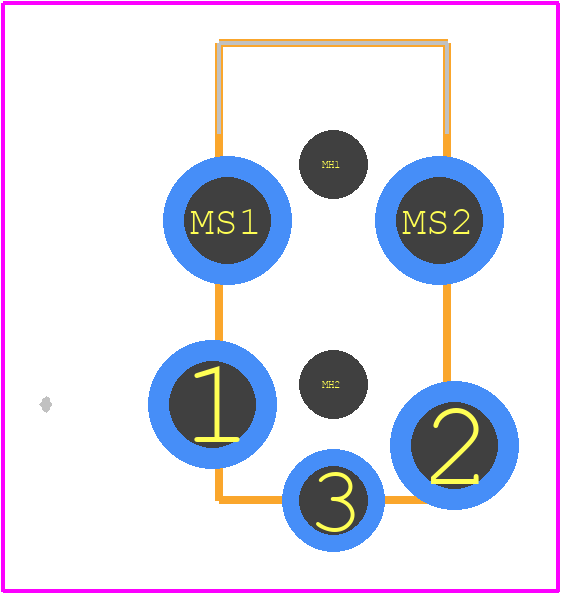

Use the download button to access the RAPC752SX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAPC7,
or try a keyword search, such as DC Power Plugs or Jacks
