RB068LAM150TFTR - ROHM Semiconductor

Description: Super Low I<sub>R</sub>, 150V, 2A, SOD-128, Schottky Barrier Diode for Automotive

Download RB068LAM150TFTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RB068LAM150TFTR - ROHM Semiconductor - PCB symbol
click to zoom

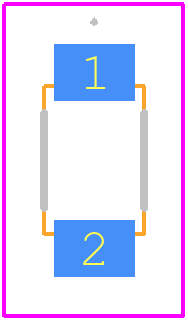

PCB Footprints
RB068LAM150TFTR - ROHM Semiconductor PCB footprint - Other - Other - PMDTM_2022-2
click to zoom
3D Models
RB068LAM150TFTR - ROHM Semiconductor - 3D model - Other - PMDTM_2022-2
click to zoom

RB068LAM150TFTR Details

  • Manufacturer Part Number:

    RB068LAM150TFTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.81 V

  • JESD-30 Code:

    R-PDSO-F2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    70 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    150 V

  • Reverse Current-Max:

    3 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

RB068LAM150TFTR Frequently Asked Questions (FAQs)

  • The recommended land pattern for the RB068LAM150TFTR can be found in the ROHM Semiconductor's packaging specification document or by contacting their technical support team.
  • The RB068LAM150TFTR has a thermal resistance of 150°C/W. To handle thermal management, ensure good airflow, use a heat sink if necessary, and follow proper PCB design guidelines for thermal dissipation.
  • The maximum operating voltage for the RB068LAM150TFTR is 35V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The RB068LAM150TFTR has an operating temperature range of -40°C to 150°C. While it can operate in high-temperature environments, ensure that the device is properly cooled and follow the recommended thermal management guidelines.
  • To ensure reliability, follow the recommended operating conditions, use proper PCB design and layout guidelines, and ensure that the device is properly soldered and handled during manufacturing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RB068LAM150TFTR Overview

Use the download button to access the RB068LAM150TFTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RB068, or try a keyword search, such as Rectifier Diodes
